Autel MaxiSys Mini MS905 Automotive Diagnostic Tablet and Analysis System

Autel MaxiSys Mini MS905 Automotive Diagnostic and Analysis System with LED Touch Display
Free Update Online for One Year, After One Year, It’s 695USD Per Year
Autel MaxiSys Mini MS905
Features and Function:
Extraordinarily powerful Cortex-A9 quad-core processor
7.9” 1,024×768 LED-backlit glossy Multi Touch capacitive display with IPS technology
Internal reliable and fast 32GB Solid State Drive for better performance
Built-in 5-megapixel rear camera with autofocus and flashlight
Dual-band (2.4 GHz & 5.0 GHz) 802.11n Wi-Fi to access your favorite web resources
Unique shop tough ergonomic design features strong rubber protection and housing;
Built-in rechargeable lithium-ion battery for up to 5 hours of continuous operation
USB, audio and auxiliary ports make it easy to connect accessories
The VCI connects wirelessly to the main unit with Long-Range Class 1 Bluetooth
Autel MaxiSys Mini MS905
Software:
Open source Android Operating System for fast boot-up and multitasking
Easy and intuitive navigation makes finding what you need simple and fast
Extensive vehicle coverage for more than 80 vehicle makes from US, Asian and European
Complete capabilities for codes, live data, actuation tests, adaptations and ECU coding
Displays live data in text, graph, analog and digital gauge for easy data review and analysis
Configures display options, sets triggers, records and playbacks results with one touch
Records and playbacks live data to pinpoint troubles of sensors and components
Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes
Remote technical support for convenient demonstration, training and increased customer satisfaction
Prints out recorded data anytime and anywhere with Wi-Fi technology
Automatic Wi-Fi updates available in new software releases
Autel MaxiSys Mini MS905
Specification:
Operating System: AndroidTM 4.0, Ice Cream Sandwich
Processor: Samsung Exynos Quad-Core Processor 1.4GHz
Memory: 2GB RAM & 32GB On-board Memory
Display: 7.9” LED capacitive touch screen with 1024x768P resolution
Connectivity: Ethernet: RJ45 Ethernet Connection Cellular: 3G/4G module: WCDMA
Camera (rear): Rear-facing, 5.0 Mexgapixel, AF with Flashlight
Sensors: Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output: Microphone, Dual Speakers, 4-Band 3.5 mm stereotype/standard headset jack
Power and Battery: 5000 mAh 3.7 V lithium-polymer battery, Charging via 12 V vehicle power
Input Voltage: 12 V (9-24 V)
Power Consumption: 3.9 W
Operating Temperature: -10 to 55 °C (14 to 131
°F
)
Storage Temperature: -20 to 70
°C
(-4 to 158
°F
)
Housing: Strong plastic housing with protective rubber boot
MaxiSYS Comparison:

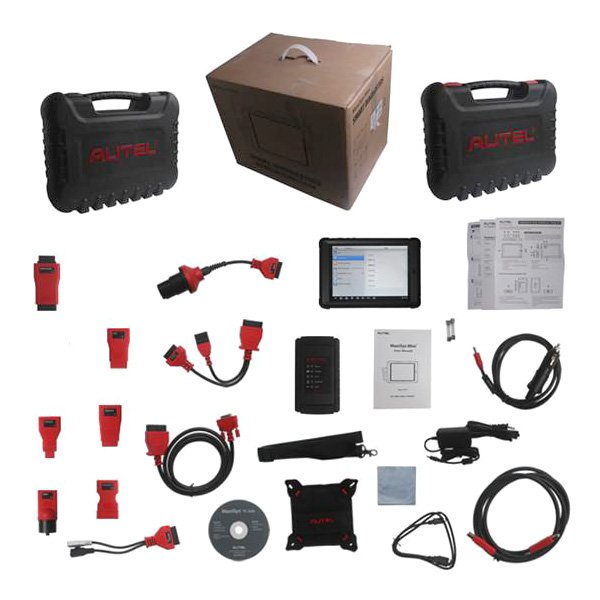

Autel MaxiSys Mini MS905 Package List:
1. Main part
MaxiSys Mini Main unit
MaxiSys Mini Case
Quick reference guide
Lighter Fuse
Main cable
Carry case
USB Cable
User’s Manual
Cigarette Lighter
Compact Disc (CD)
AC/DC External Power Adapter
Wireless Diagnostic Interface
Capacitive Stylus Pen
Soft Cloth
Packing List
Mini USB Cable

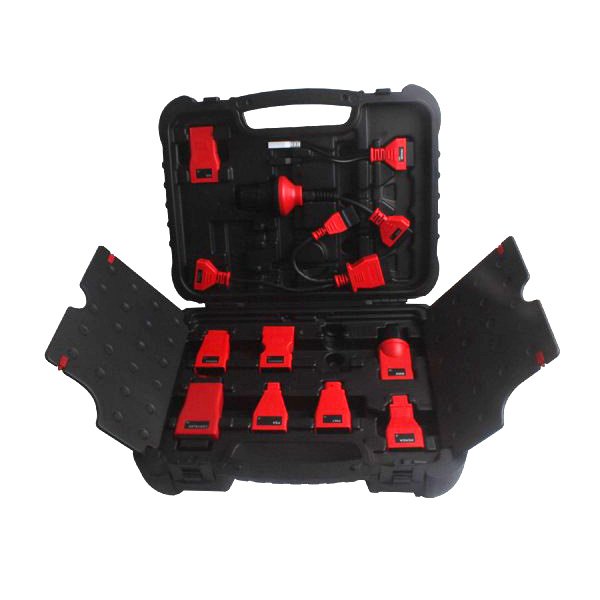

2. Adaptor
GM/Daewoo-12 adaptor
PSA-2 adaptor
Fiat-3 adaptor
Audi-2+2 adaptor
BMW-20 adaptor
Benz-38 adaptor
Kia-20 adaptor
Mitsubishi/Hyundai-12+16 adaptor
Nissan-14 adaptor
Honda-3 adaptor
Chrysler-16 adaptor
Benz-14 adaptor
FAQ:
Q:WhichlanguagesdoesMS905support?Isthereausermanual?
A:MS905supportsMulti-languageandalsoithasaquickreferenceguide.
