Humzor NexzDAS ND626 Support Diagnostic+Special Functions+Key Programming for Both 12V24V Cars and Heavy Duty Trucks
Product Description
1.Humzor NexzDAS ND606 runs across different platforms and combines passenger cars diagnosis, commercial vehicles diagnosis, reset service, key programming function in one.
2.It greatly offers the professional but high cost-effective, small but smart diagnosis solution for mechanics, making car repair more intelligent, convenient and efficient.
Humzor NexzDAS ND606 Lite Support
Diagnostic+Special Functions+Key Programming for Both 12V/24V Cars and Heavy Duty Trucks
NexzDAS ND606 runs across different platforms and combines passenger cars diagnosis, commercial vehicles diagnosis, reset service, key programming function in one. It greatly offers the professional but high cost-effective, small but smart diagnosis solution for mechanics, making car repair more intelligent, convenient and efficient.
Features:
1.Diagnosis for cars
A full-system quick scan, deep diagnosis on all the electronic systems of the vehicle with a detailed report.
2.Diagnosis for trucks
Trucks, construction machinery, agricultural machinery, engine systems, electronic control systems, natural gas systems, exhaust gas treatment systems included…
3.Exhaust aftertreatment
Support a full range of exhaust gas aftertreatment system diagnosis.
adapting to the current market needs for diagnostic development of Euro â…¡,â…¢,â…£,â…¤,â…¥.
4.Actuation test
Test of smooth running control, test of single cylinder comparison, test of impact time, actuation of constant throttle, actuation of engine brake…
5.Reset service
Oil reset, TPMS, ABS, SAS, TPS, DPF, EPB, battery test, Injector adjust for passenger cars.
dpf generation & brake & transmission coverage & cylinder test & ABS & injector…
for commercial vehicles.
6.Across different platforms
Android available now (iOS, windows under developing).
freely choose smartphone, tablet, and pc (released later) to achieve intelligent and efficient operation.
7.Continuously releasing new functions
More advanced functions are under developing now for later release, such as ECU coding & programming, ECU tuning, etc.
All free to update gradually.
8.User-friendly experience
Quick access to VIN query, dtc query, data manage, data playback, feedback icon, screenshot, etc. fully provide you with intelligent and easy operation.
9.Free download; free update; free Shipping; free return
Free download and update for wide vehicle models in the app store of the software.
get it with fast delivery and 30-days no risk return policy.
10. Remote assistance offered
Perfect after-sales service with all-around help, we continuously listen to your voice, contact us and feedback to get professional help in time
Function description:
1.Full-System diagnosis for passenger cars
NexzDAS ND606 fully covers all the electronic control systems of wide vehicle models, covering asian, european,american, chinese, australian.read dtcs, clear dtcs, read live data, actuation test…
Quick scan
Read/clear codes for all systems, input the VIN and automatically recognize it, or manually select the vehicle model,type and year to start the quick scan for all the control units and get the inspection result with detailed dtc description.
Actuation test
Carrying out tests on some components of the vehicle and access vehicle specific subsystems.
It may vary by makes, models, types, years, thus only the available ones will be shown.
2.All Modules Scan for Commercial Vehicles
ND606 greatly includes diagnosis for trucks, construction vehicles, agricultural vehicles, engine, etc.
For full system diagnosis. engine system, body system, ABS, transmission, airbag, gearbox,etc.
3.Special Functions
Oil Reset: allows you to perform reset maintenance mileage and data intervals for a new calculation of engine oil life system once changed the oil.
TPMS: makes sense in displaying sensor ids from the vehicle’s ecu, inputting tpms sensor replacement ids to test and activate it.
ABS: cycles the system solenoid valves and runs the pump in order to purge the air from the secondary circuits.
SAS: helps clear the fault steering angle sensor memories and plays an important role in the sas calibration.
Injector Adjust: diesel injector code need programming id and parameters to the ecu for accurate communication and injection control system.
TPS: the throttle position sensor is able to effectively observe where the throttle butterfly valve is positioned.
Battery Test: to evaluate the battery charge state, monitor the close-circuit current, register the new battery replacement and activate the reset state of the vehicle battery system.
EPB: it is important in the maintenance of electronic braking system’s safety and efficiency when replace brake pad or motor.
DPF: specially works for diesel particular filter system with dpf generation, dpf component replacement teach-in and dpf teach-in after replacing the engine control unit.
4.Key Programming for cars
Immo code reading: can read the Immo code of specific car models.
Key programming: greatly supports key matching.
Add car key: add and match the new key to the car.
Erase car key: delete the key that does not need.
Key information reading: read the information of the key, quantity, frequency, etc.
All key lost: support most cars all key lost via direct OBD matching.
ECU programming
Supports online programming of BMW, VW, AUDI, BENZ, PORSCHE, etc.
with wide model and year coverage.
ECU coding
Supports off-line coding of roewe, mg, etc.
Online coding, online parameterization, online scn, online airbag query&coding is supported by BMW, VW, AUDI, BENZ,PORSCHE, HYUNDAI,KIA…
Update hidden functions
BMW– tire pressure monitoring, rear view mirror folding delay,etc.
VW, AUDI– automatic window closing, locking sound, etc.
TOYOTA, NISSAN– automatic locking, interior light setting,etc.
Vehicle coverage:
American:BUICK, CADILLAC, CHEVROLET, CHRYSLER, FORD, GM, GMC, HUMMER, JEEP, LINCOLN, MERCURY, SATURN, PONTIAC, OLDSMOBILE, SCION
European:ABARTH, ALFA ROMEO, ASTON MARTIN, AUDI, BENTLEY, BENZ, BMW, BUGATTI, CITROEN, CVVW, DACIA,FERRARI, FIAT, FORD, JAGUAR,LAMBORGHINI, LANCIA, LANDROVER, MASERATI, MINI, OPEL, PEUGEOT, RENAULT, ROLLS ROYCE, SAAB, VW, SEAT, SKODA, SMART, VAUXHALL, VOLVO
Asian:ACURA,DAEWOO, HONDA, HYUNDAI, INFINITI,ISUZU, KIA, LEXUS, MAZDA, MITSUBISHI, NISSAN, RENAULTSM, SSANGYONG, SUBARU, TOYOTA, SUZUKI
Chinese:BYD, CHANGAN, CHANGE, CHERY, EMGRAND, ENGLON, FOTON, GEELY, GLEAGLE, GWM, HBSH, HUACHEN, RIICH, WULING, YUAN, ZOTYE
Australian:FORD, HOLDEN
Specifications:
Communications:Bluetooth 4.2
Operating Voltage:9~30V DC
Operating Temperature:-20~70°C(14-158℉), Relative Humidity: < 90%
Storage Temperature:-40~85°C(-40-185℉), Relative Humidity: < 90%
Average Power Consumption:<2W

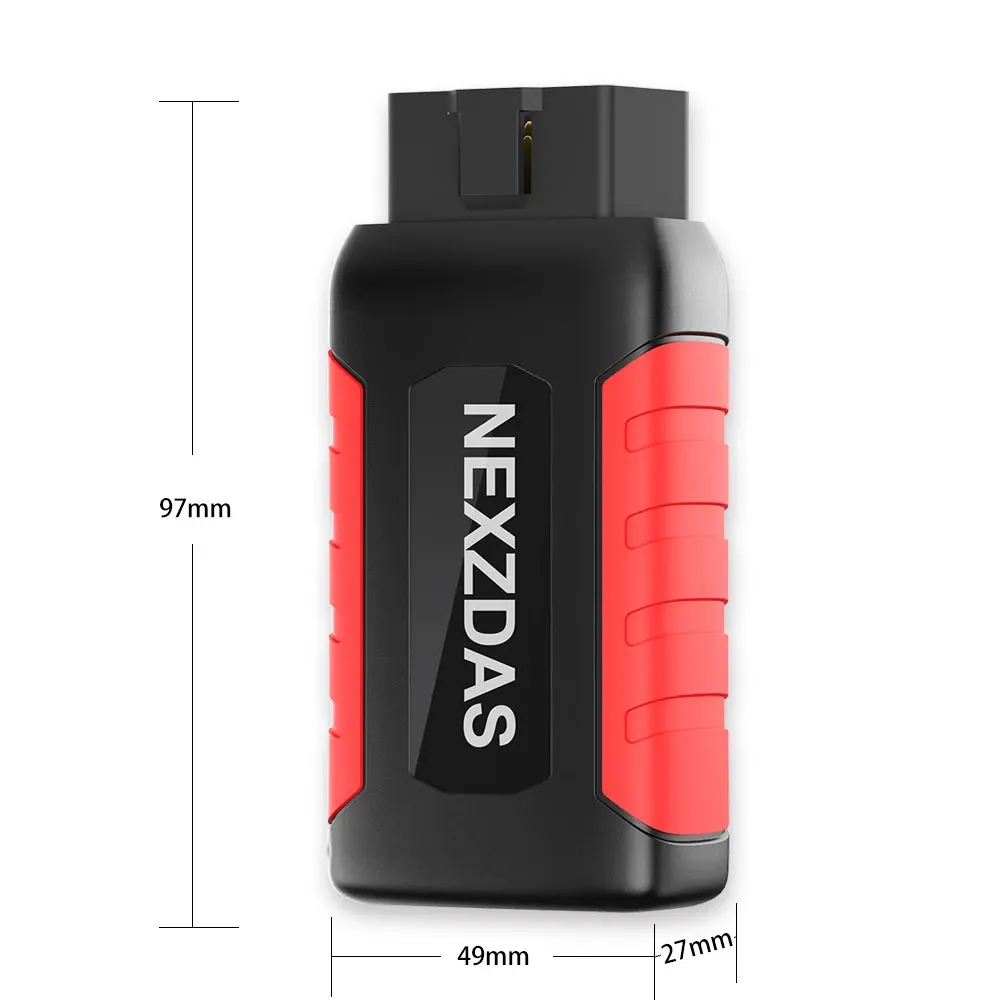

Dimension:97mm*47mm*26mm

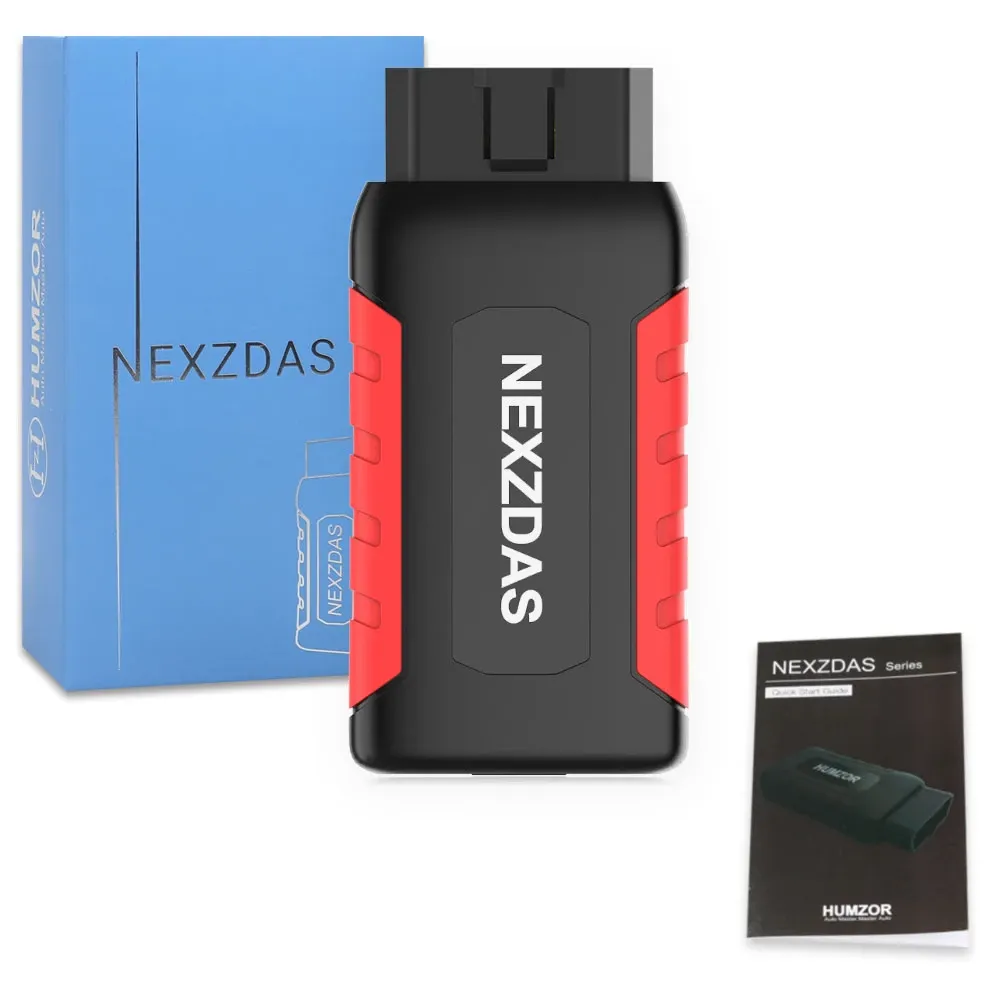

Package includes:
1pc x Humzor NexzDAS VCI
1pc x Package bag
1pc x Password Envelope
1pc x Quick Start Guide
