Product Introduction:

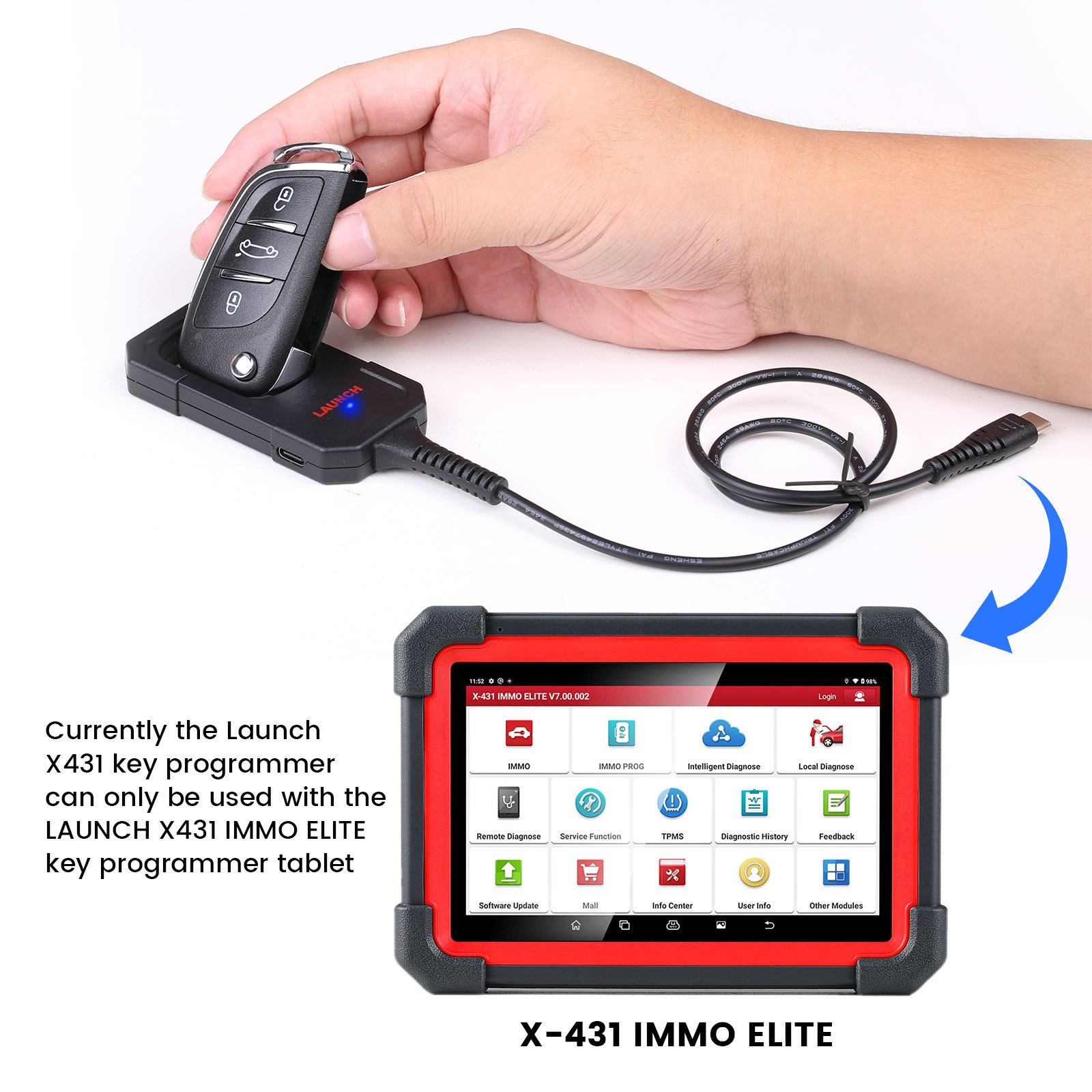

Currently the Launch X431 key programmer can only be used with the LAUNCH X431 IMMO ELITE key programmer tablet(SK387), the LAUNCH X431 IMMO PLUS key programmer tablet(SK402), LAUNCH X431 PAD â…¦(SP371) and LAUNCH X431 PAD â…¤.
Introduction to the functions of super chips: Support the conversion of most car model chip types, and support separate matching to achieve vehicle startup. Support chips of the 8A, 8C, 8E, 4C, 4D, 4E, 48, 7935, 7936, 7938, 7939, 11/12/13 types.
Method of using super chips
1. Enter the menu [Set type of super chip] to generate.
2. Select the corresponding key chip type and insert the super chip into the anti-theft induction coil.
3. Once successfully generated, it can be used.
Key programmer + key * 4 set includes: key programmer, USB to Type C, LS Nissan (smart card, 4 buttons) -01, LN Peugeot DS (folding 3 buttons) -01, LE Volkswagen super remote (folding 3 buttons) -01, LE Ford super remote (folding 4 buttons) -01

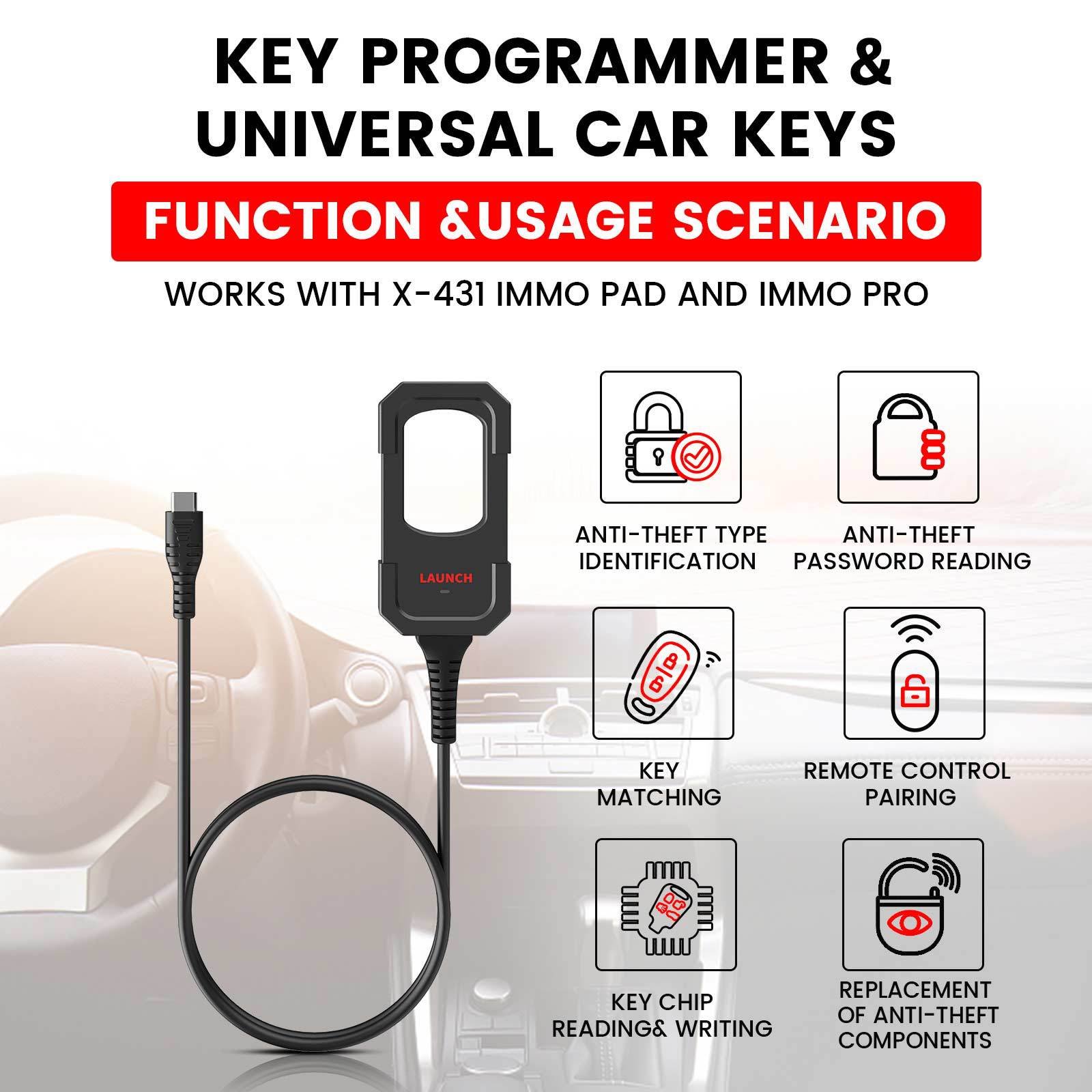

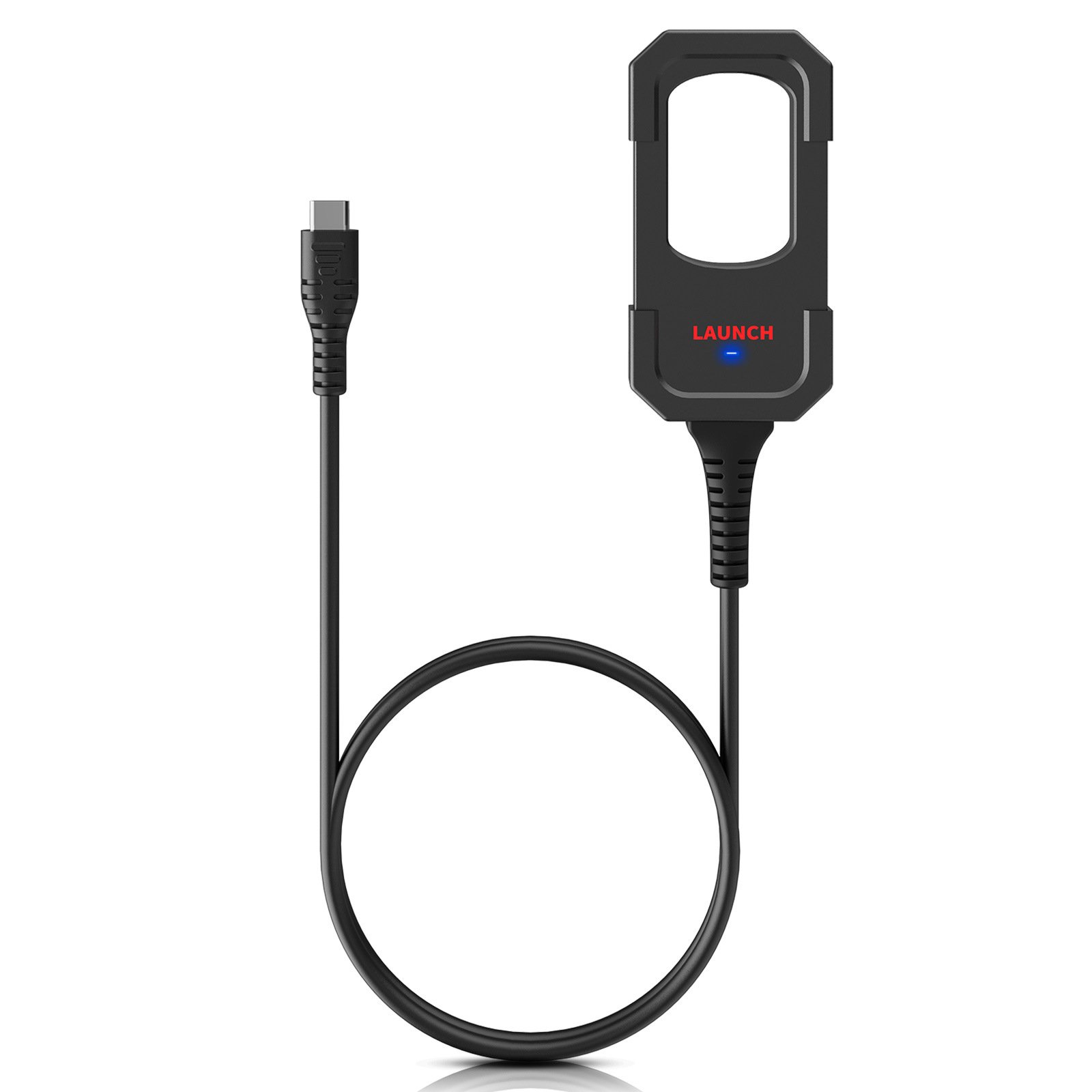

Key programmer: Identify car key chips and generate various types of chip models from super remotes, read the remote control frequency of car keys, and generate remote control devices for different car models from various types of super remotes.
USB to TYPEC connector: device to key programmer
LS Nissan (smart card, 4 buttons) -01, LN Peugeot DS (folding 3 buttons) -01, LE Volkswagen super remote (folding 3 buttons) -01, LE Ford super remote (folding 4 buttons) -01 super remote: One click start smart key models and use LS series Nissan super remotes to generate corresponding keys. For car models with electronic chip keys or the 11/12/13/7936/7937/7947/7946 chips, use the LN series DS super remote. For models without electronic chip keys or models 46, 48, 4D/70, 83, 8A/H, G, 4E, 11/12/13/C, 42, 33, 47, 8C, and 8C, use the LE series Volkswagen and Ford super remotes.
Method of using the LE Volkswagen and LE Ford super remotes:Â
1. Enter the [Vehicle Remote] menu and select the corresponding available super remote to generate.
2. Select the corresponding key and place the super remote key in the key programmer to generate.
3. After the remote control is successfully generated, enter the [Set type of super chip] menu to generate the corresponding key chip
Method of using LS Nissan super remote:Â
1. Enter the [Vehicle Remote] menu and select the corresponding smart key model to generate.
2. Place the smart remote key in the key programmer to generate.
Method of using LN Peugeot DS super remote:
1. Enter the [Vehicle Remote] menu and select the corresponding electronic key model to generate
2. Place the electronic remote key in the key programmer to generate.
3. For car models without electronic keys, enter [Set type of wireless remote] to generate the corresponding key.
Statement: The content of this document is copyrighted by Shenzhen Launch Tech Co., Ltd., and no individual or organization may quote or reprint it without consent.
Product Specifications of Launch X431 Key Programmer:  Â
Product size: 80*40*11.2mm
Working voltage: 5V
Operating temperature: 0-50°C
Communication interface: USB
Low-frequency communication interface: 125K low-frequency transceiver
High-frequency communication interface: support 13.56M high-frequency transceiver, support 3000M-500M high-frequency signal frequency measurement
Introduction of 4 smart keys:
| Product Name | Picture | Usage Scenario | Function |
| LS4-NISN-01 | Â LS intelligent key is only compatible with vehicle models equipped with the Kessy system, its functions include keyless starting and door edge sensing. | 1.Wireless programming 2. Equipped with anti-theft chip 3. Uses the button cell 2032 4. Circuit board with a 2-year warranty 5. Repeatable writing 6. Batteries need to be installed while generating 7. Supports vehicles with 46, 47, MQB48, MQB49, 4A chips |
|
| LN3-PUGOT-01 | Certain chips in LN remote can’t generate all vehicle models, it’s needed to check whether the type of chip can support the vehicle model, the chip is integrated into the remote. | 1．Wireless programming 2．Equipped with anti-theft chip 3．Uses the button cell 2032 4．Circuit board with a 2-year warranty 5．Repeatable writing 6．Batteries need to be installed while generating 7．Supports vehicles with 11, 12, 13, 7936, 7937, 7947, 7946 chips |
|
| LE3-VOLWG-01 | LE remote contains chip and remote, the multimode chip can generate most of the vehicle models and cover the majority of them. | 1．Wireless programming 2．Equipped with a multimode chip 3．Uses a button cell 2032 4．Circuit board with a 2-year warranty 5．Repeatable writing 6．Batteries need to be installed while generating |
|
| LE4-FRD-01 | LE remote contains chip and remote, the multimode chip can generate most of the vehicle models and cover the majority of them. | 1．Wireless programming
2．Equipped with a multimode chip 3．Uses a button cell 2032 4．Circuit board with a 2-year warranty 5．Repeatable writing 6．Batteries need to be installed while generating |

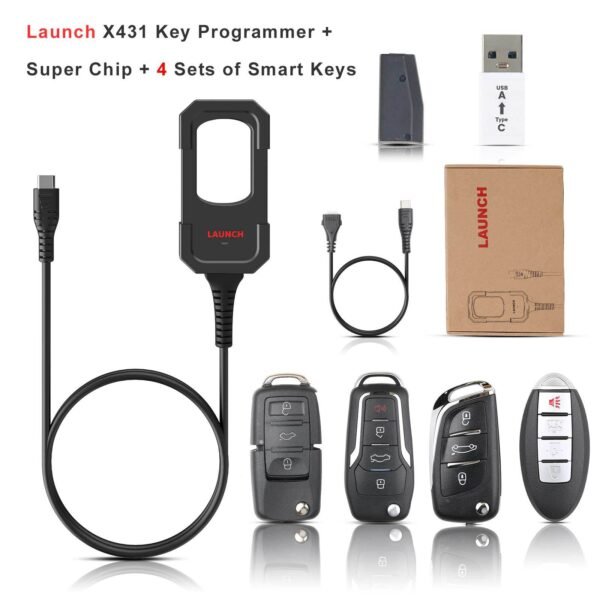

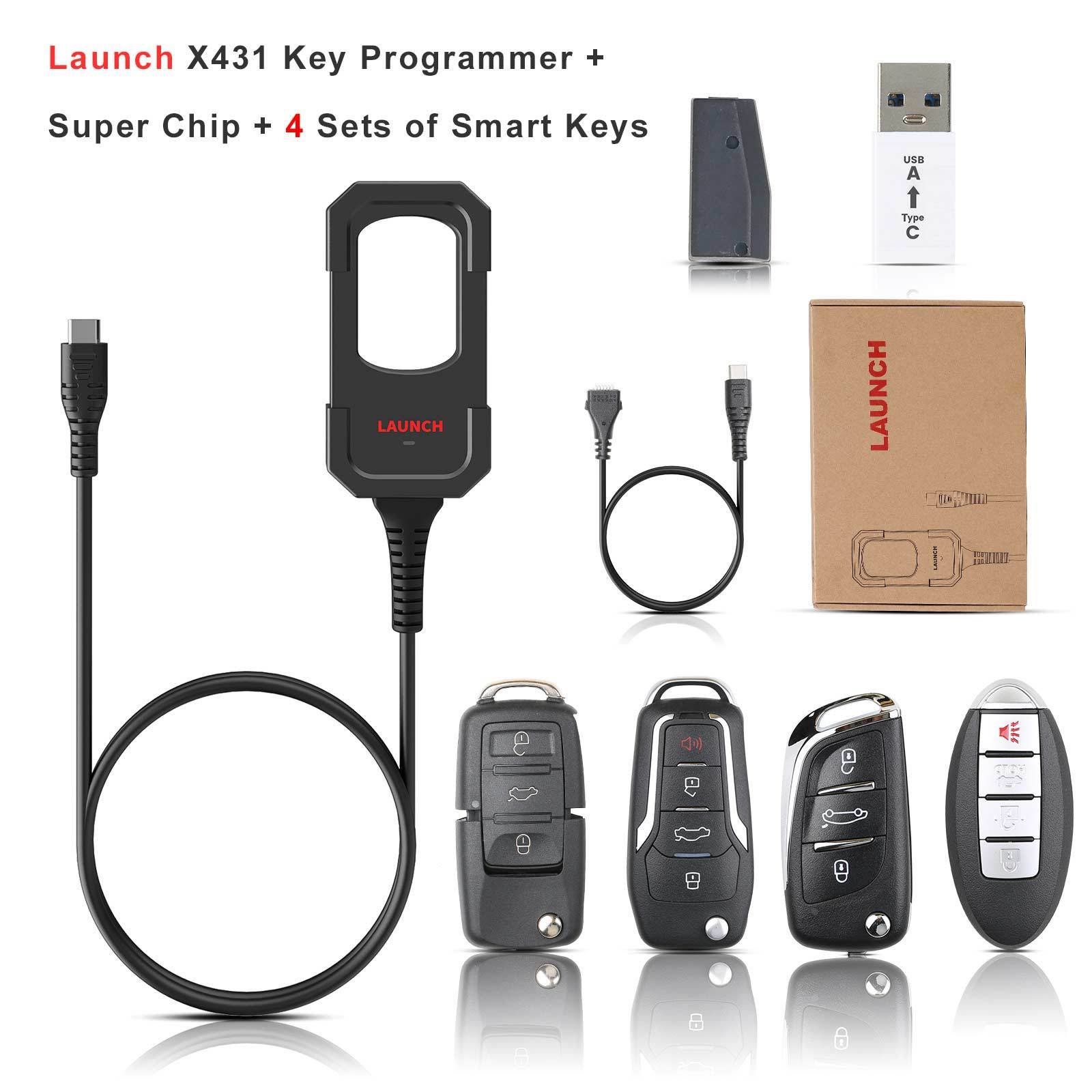

Package Includes:
1pc x Launch X431 Key Programmer
1pc x Super Chip
4pcs x Smart Keys
1pc x Type-C to USB A Converter
