Overview

Professional, Reliable, Affordabl

Measuring parameter:

Display accuracy: Range – , Accuracy 1/0.01°/0.1mm

Camber: Range ± 10°, Accuracy ± 2′

Caster: Range ± 20°, Accuracy ± 6′

K.P.I.: Range ± 20°, Accuracy ± 6′

Toe-in: Range ± 20°, Accuracy ± 2′

Set back: Range ± 5°, Accuracy ± 2′

Thrust angle: Range ± 5°, Accuracy ± 2′

Thread: Range 1,800mm, Accuracy ± 1mm

Wheelbase: Range 3,500mm, Accuracy ± 2mm

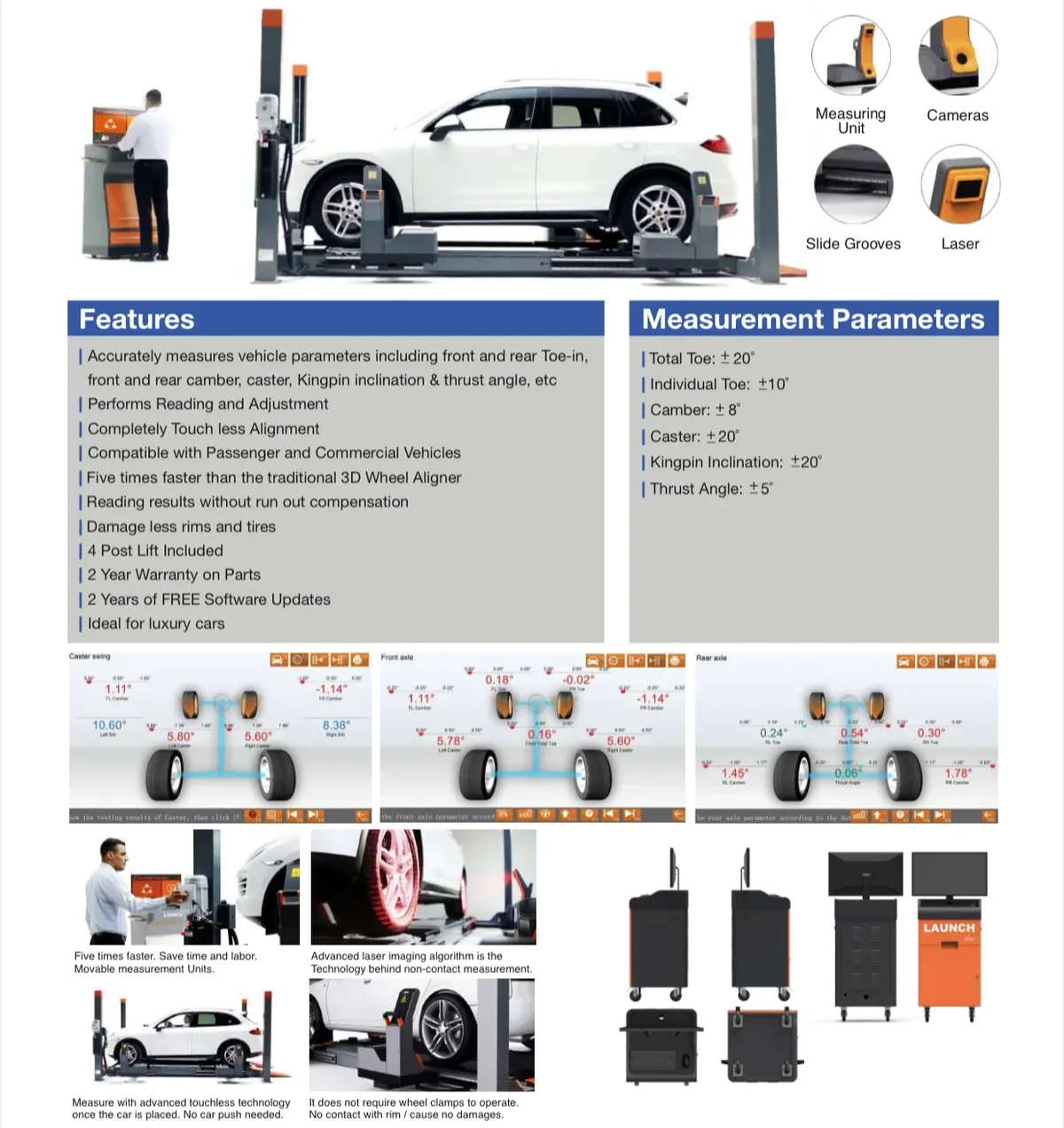

Product function

The parameters of four-wheel alignment are measured, including front and rear wheel harness angle, front and rear wheel camber angle, kingpin camber angle, kingpin camber angle, thrust angle, etc.

Product characteristics

Simple and fast, no need to disassemble and assemble wheel clamp and target;
Time-saving, labor-saving, no need for cart compensation;

No damage to rim, no real contact measurement;

The data is accurate and real-time, and the advanced laser image processing technology is used.

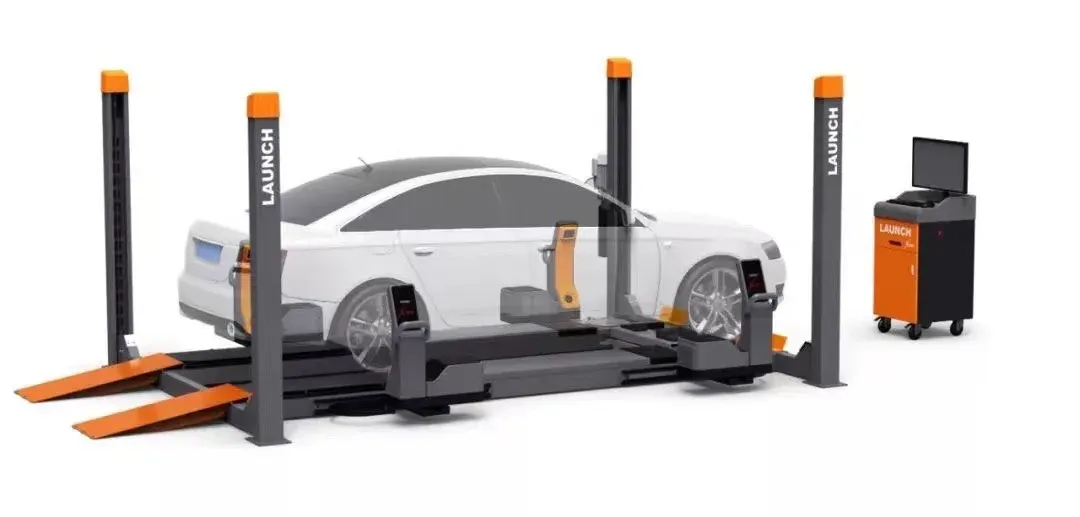

X-931 Non-contact Four-wheel Positioning Instrument

system configuration

Hardware configuration:

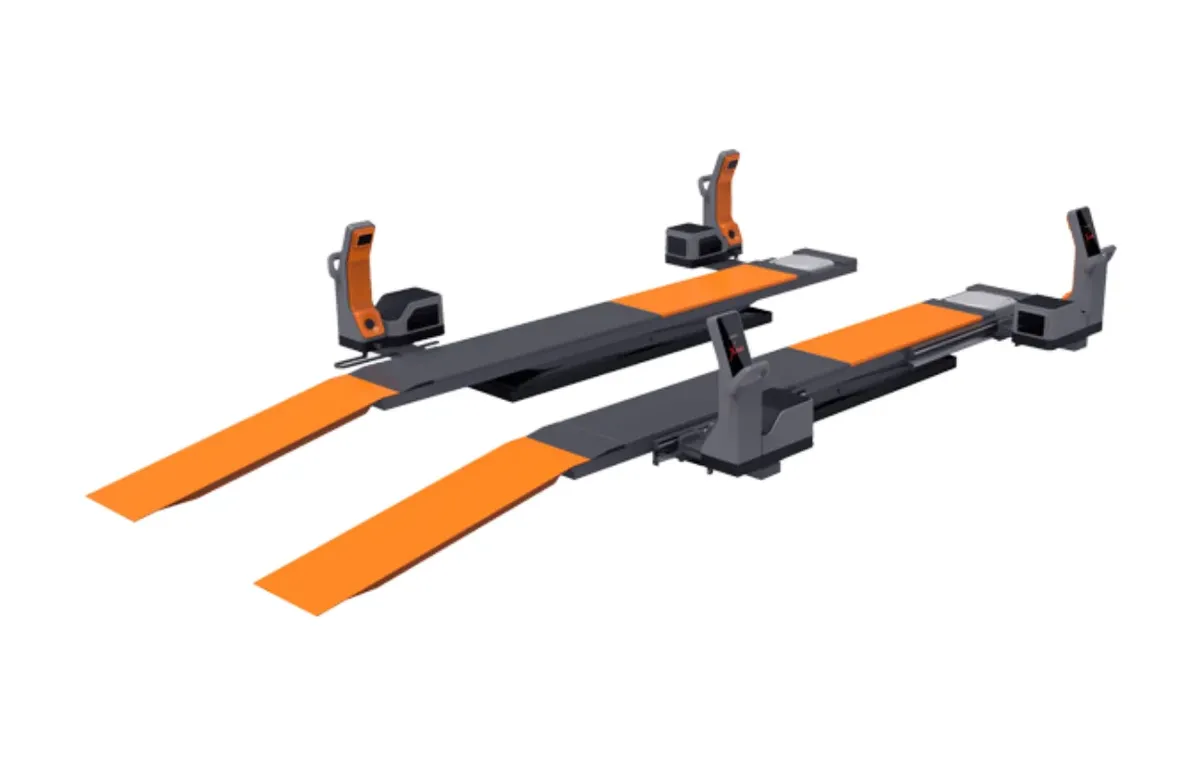

Non-contact measuring unit: 4 sets
Lift: 1 set
Computer: 1 set (host, monitor, keyboard, mouse)
Printer: 1
Speaker: 1
Cabinet: 1
Software configuration:Four Wheel Positioning Instrument Matching Software (Including Vehicle Type Database)
