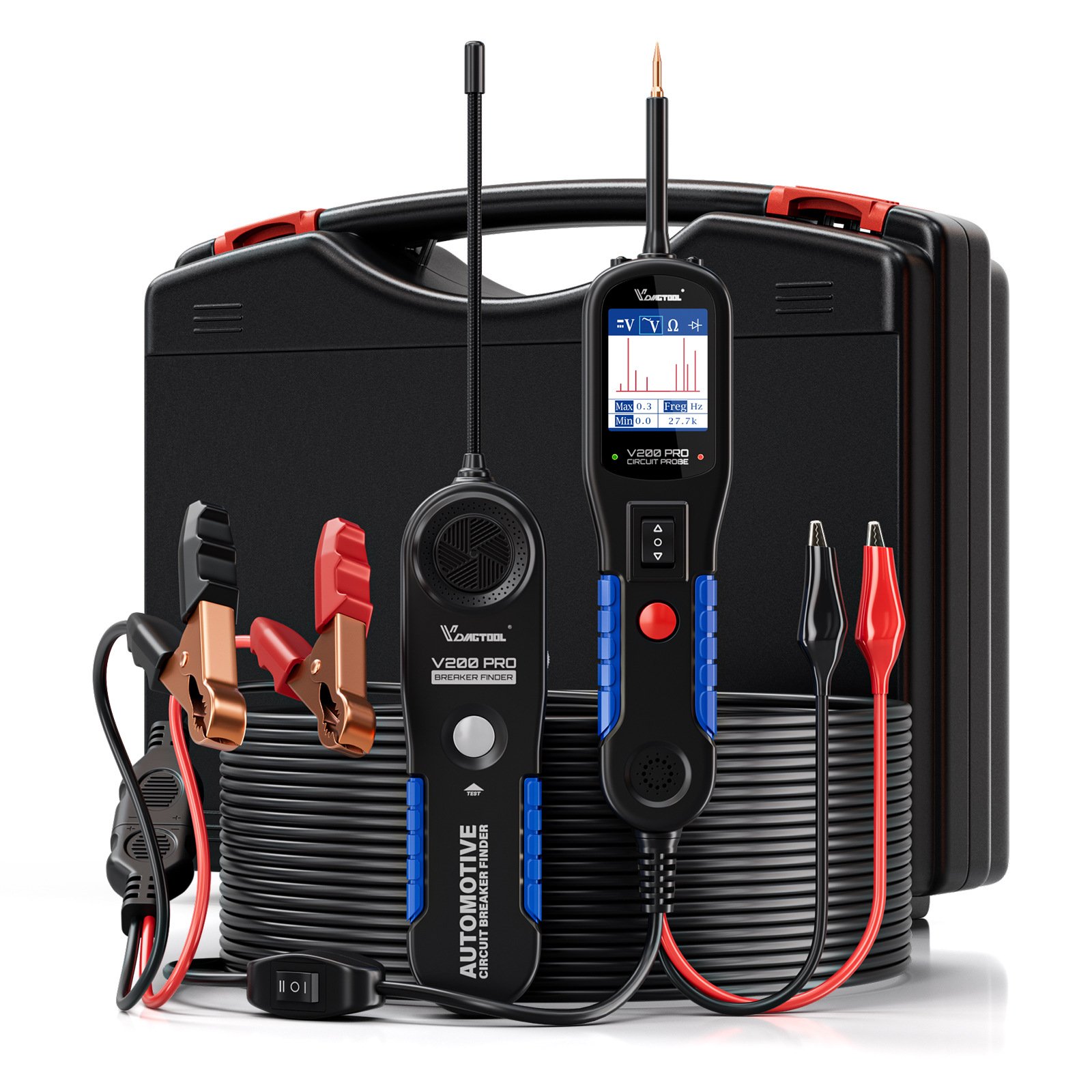

Vdiagtool V200 Pro Car Circuit Probe Tester

V200 Pro covers all circuit tests: ✅Circuit Breaker/Open Test✅Tracing Wire✅AC/DC Voltage Test✅Diode Test✅Resistance Test✅Polarity Test✅Continuity Test✅Ground Test✅Activate Components✅Signal Circuit Test✅Relay, Fuse, Trailer Light Test. You can quickly & easily Locate short circuits, open connections, broken wires, current leaks and even trace wires. Get this essential circuit tester today and save your time and costly trip to a dealership!

⚡2024 New Arrival Vdiagtool V200 pro Car circuit Probe Tester:

📌4 Working Modes: AC/DC Voltage, Resistance Test and Diode Test.

📌One-Click Circuit/Breaker Finder Modes Switch: Switch to Mode I, supports 4 working modes. Switch the Mode II, you will be able to use the breaker finder which can easily locate the circuit breaker point.

📌12 Automotive Electrical Tests: Vdiagtool V200 Pro is a Comprehensive Power Circuit Tester and Locating Breaker Point with multi function

📌Overload Protection & Beep Warning: This automotive electrical tool comes with short circuit protection. Whenever it gets overloaded, it just gonna shut down and restart

📌External Headphone Port: You can use the earphones together with V200 Pro, it is convenient for you to prepare for further evaluation of the electric wire problem.

📌Powered by Battery & Cigarette Lighter: This circuit tester can be powered by either connecting to cigarette lighter/vehicle’s battery,no external battery needed!

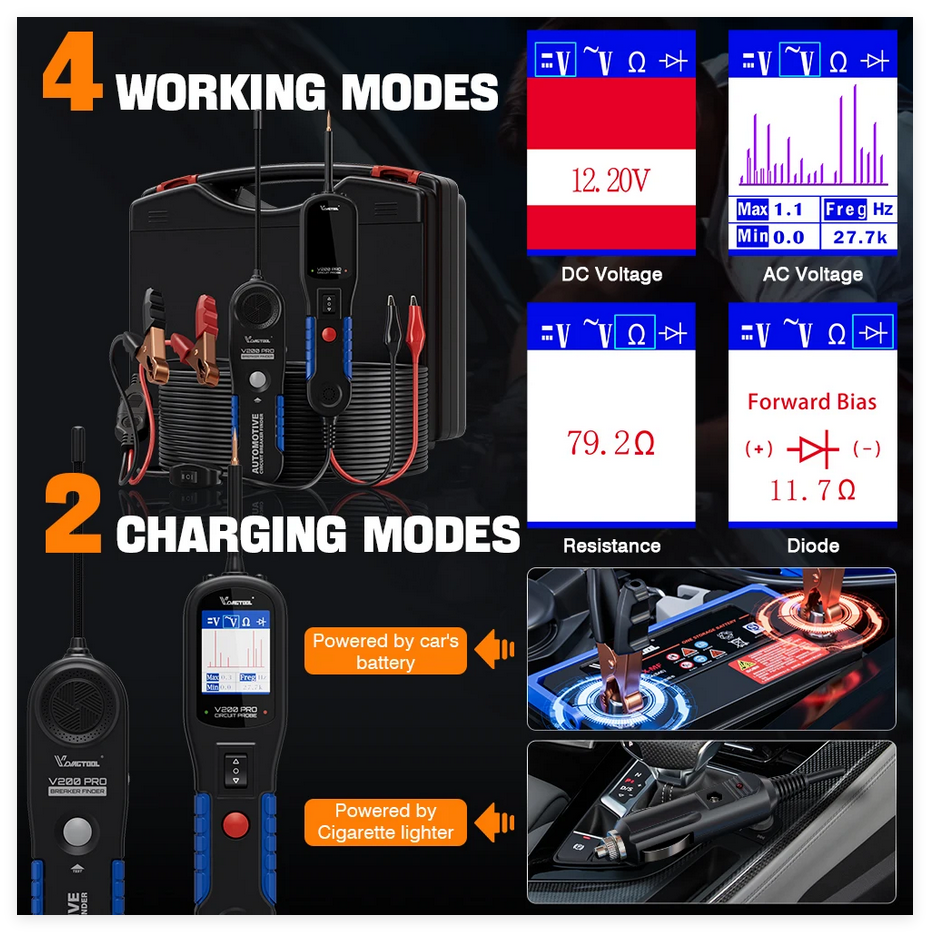

⚡4 Working Modes – Simply Switch The Mode Button:

📌DC Voltage Test: DC voltage detects the voltage value of the circuit under test with a resolution of 0.1 volt.

📌AC Voltage Test: AC voltage detects the Max. Voltage, the Min. Voltage and Frequency of the circuit under test.

📌Resistance Test: Detect the resistance between the circuit probe tip and auxiliary ground lead.Determines whether an electrical circuit is complete or broken and if the resistance of a component matches the manufacturer’s specification.

📌Diode Test: Detect the operation of the diode assembly and determine if it is conducting.Display the actual forward voltage of the diode when its conducting current.

✍️WARNING:

Applying voltage to some circuits at will damage the electronic components of the vehicle.Kindly use the vehicle manufacturer’s schematics and diagnostic procedures when testing.

✍️NOTE:

When power up this probe tester kit, press the power switch first, then contact the tip with the component, the operation life of power switch will be extended.

⚡2 Charging Modes：

📌be powered by the car’s battery

📌be powered by cigarette lighter, no extra battery or cable required.

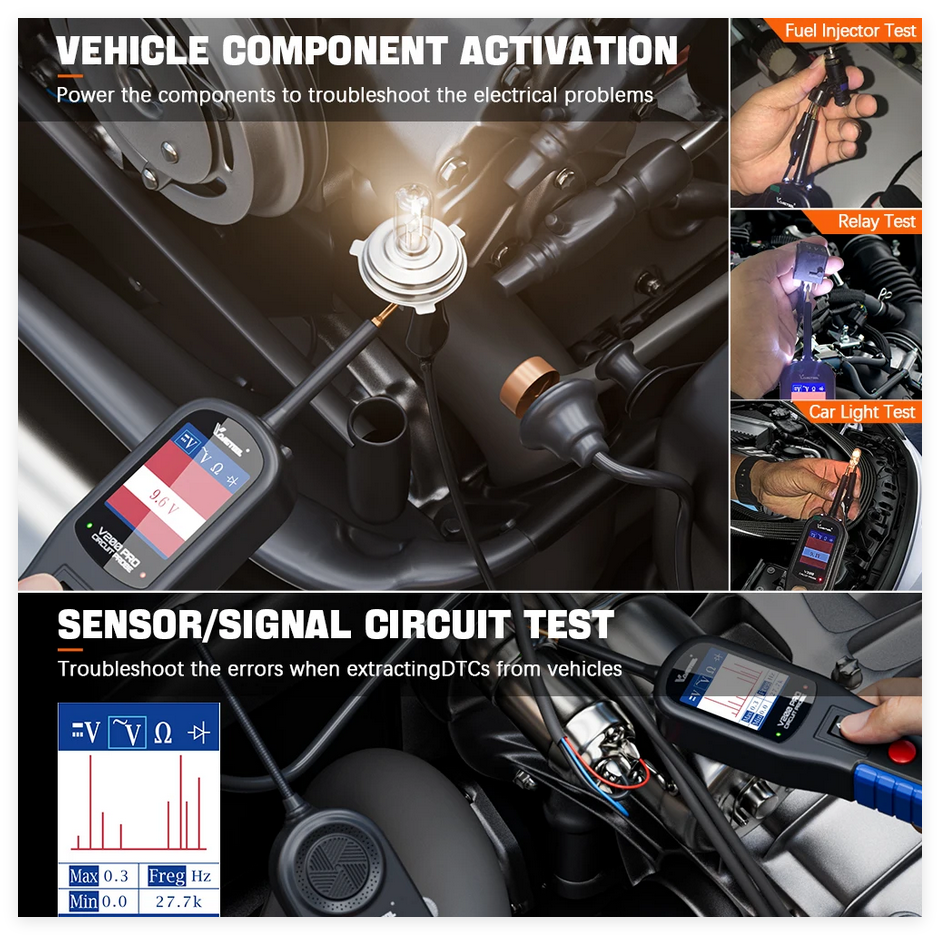

⚡Component Activation & Sensor Signal Circuit Test:

VDIAGTOOL V200 Pro power circuit probe kit can generate activation signals to electrical components like car lights, motors, windshield wipers, radiator fans, relay, fuel injector and etc to troubleshoot electrical problems; locate auto short circuits if you keep getting blown fuses and also test various sensors, signal circuits to pinpoint the root cause to electrical issues when you have extracted DTCs from vehicle ECUs.

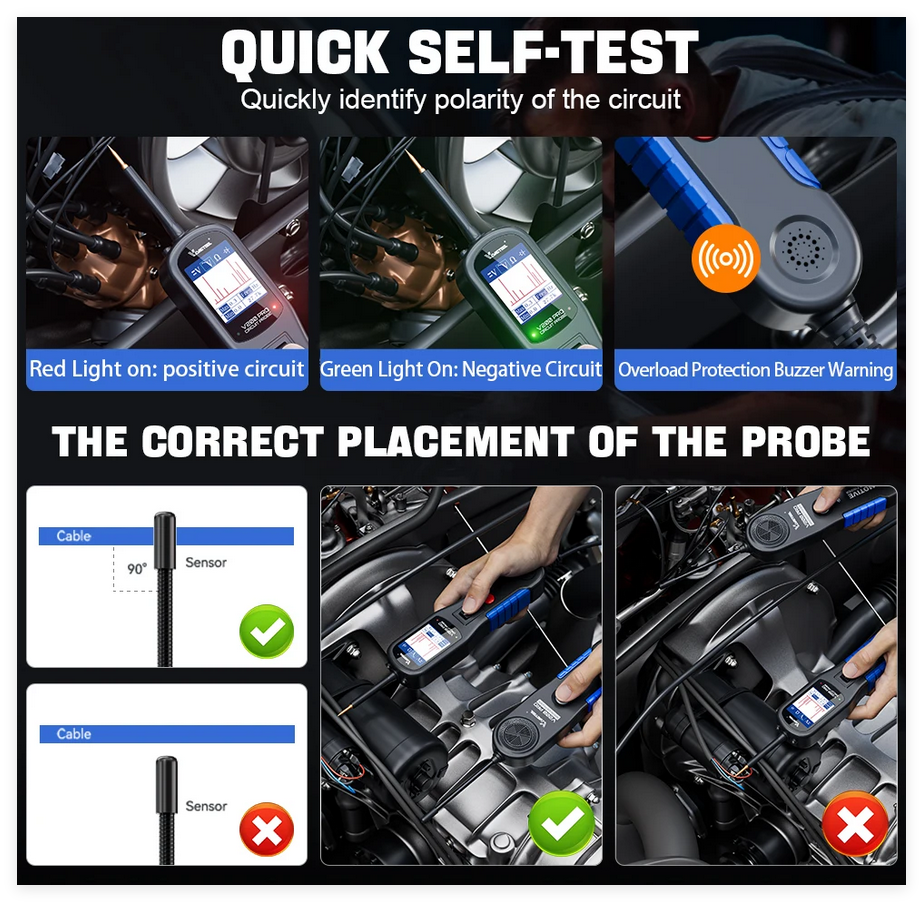

⚡Quick Self-test to make sure it is working properly before you start using it.

📌Red Light on: positive circuit

📌Green Light On: Negative Circuit

📌Overload Protection: Buzzer Warning

⚡How to Use V200 Pro Correctly:

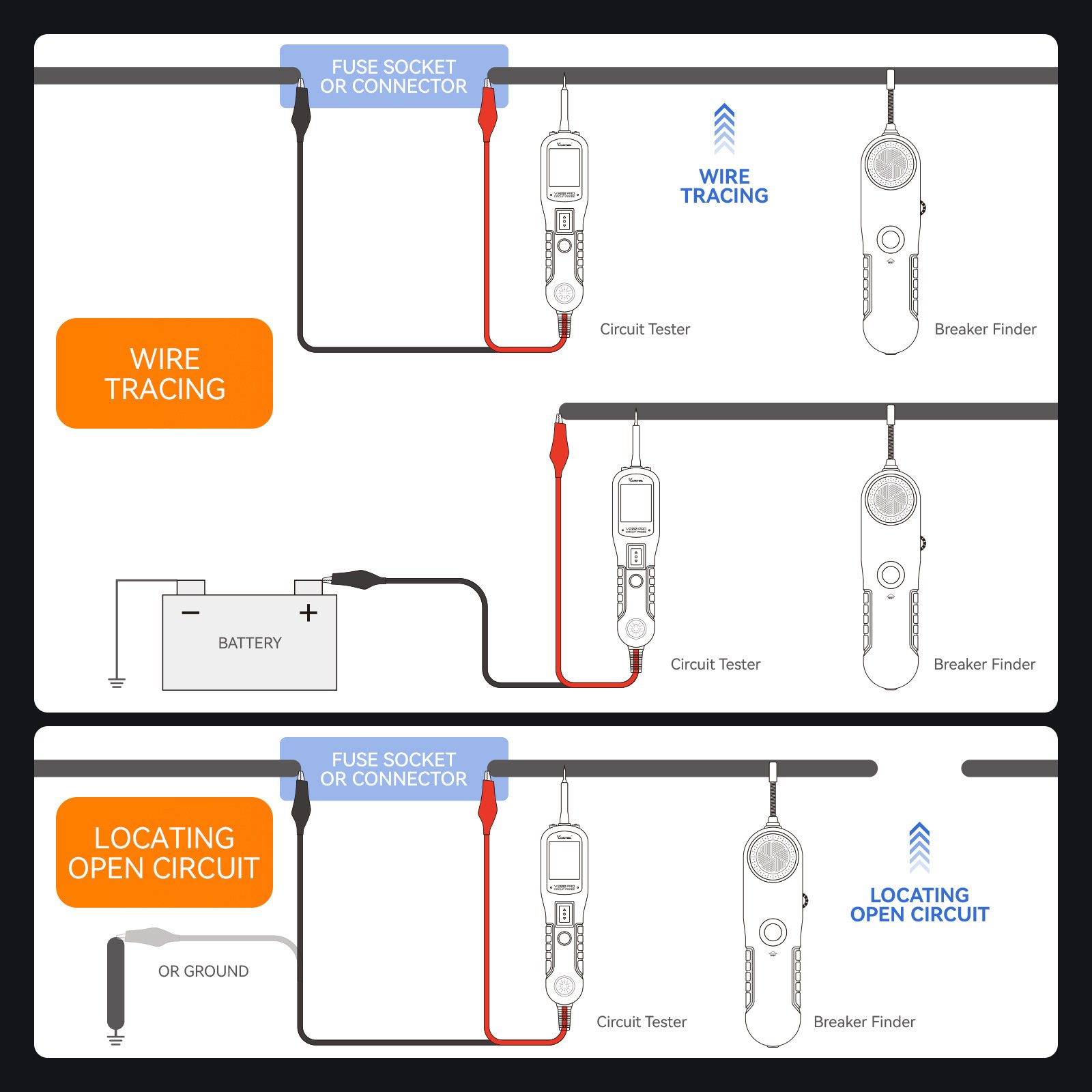

For the best possible range, the Breaker Finder’s probe tip(black cap) should be positioned perpendicular(at 90°) to the wirebeing traced and either above or below it.

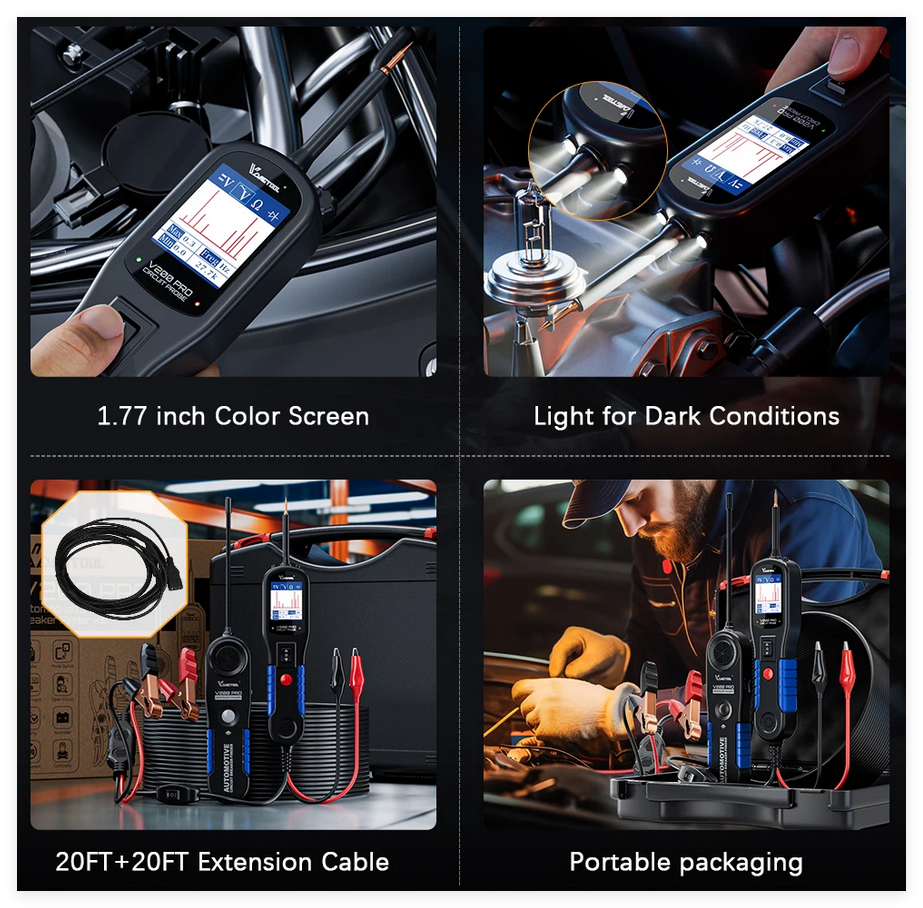

⚡More practical functions：

📌1.77 inch Color Screen：Color Screen LCD for Clear Data

📌Light for Dark Conditions: Enable you work safer in the dark.

📌20FT+20FT Extension Cable: Covering from the front to the rear of the vehicle, you can easily inspect the entire electrical circuit system.

📌Portable packaging: Very portable and extremely convenient for working outside.

⚡Wide Application:

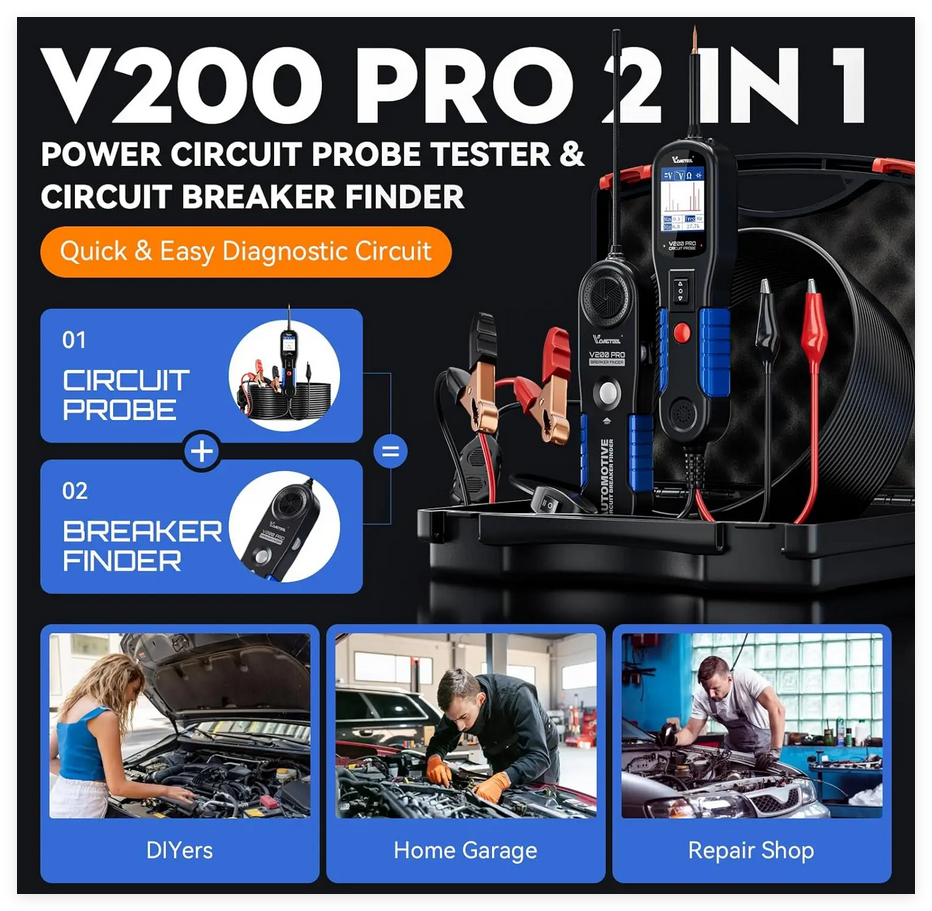

meets the needs of 2 products at one time. Simply and quickly switch from the power circuit probe tester functional mode to the circuit breaker finder tool mode with one click. There is no need to get an extra tool to judge continuity of the cables/wire and diagnose the breaker point. This convenient and efficient circuit instrument is a great choice for DIYERS,electrician and technician. Applicable to most 12-24V cars.

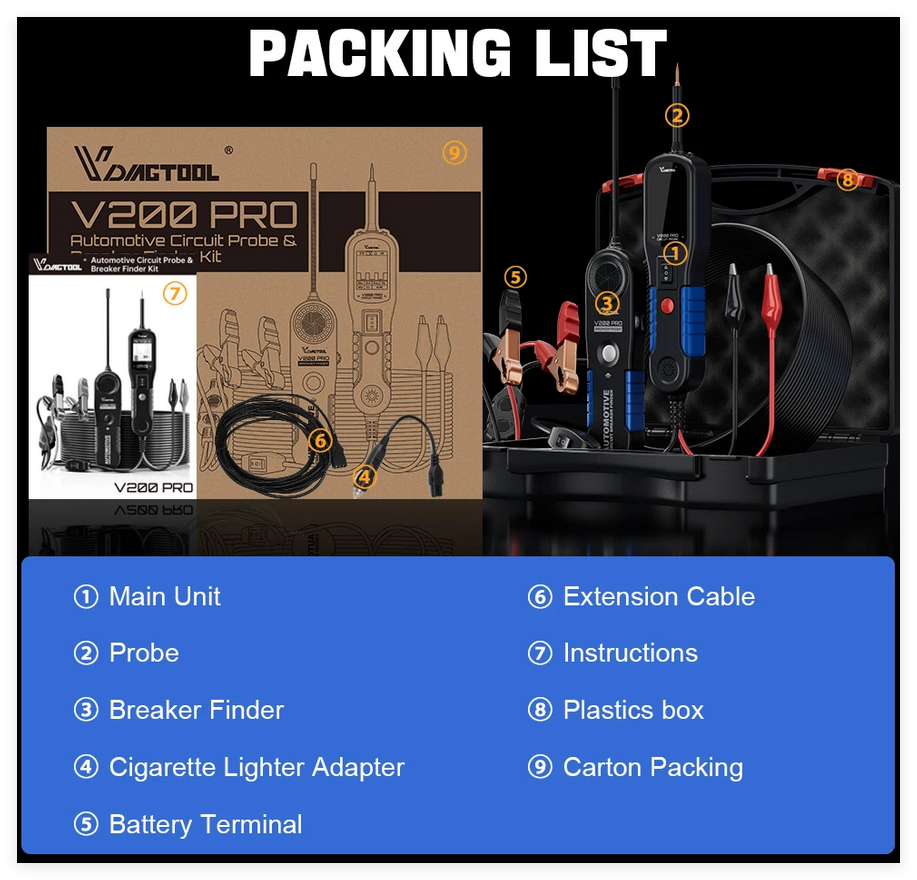

⚡Packing List:

📌1. Main Unit
📌2. Probe
📌3. Breaker Finder (✍️Note: Breaker Finder without Battery,need 2 pieces 9V batteries.)
📌4. Cigarette Lighter Adapter
📌5. Battery Terminal
📌6. Extension Cable
📌7. Instructions
📌8. Plastics box
📌9. Carton Packing
