💪Locate Open Circuits
Open Wire Detector instantly detects and alerts you to open circuits. Easily locate short circuits, broken wires, open connections, current leaks, and trace wires. Transmitter and receiver LEDs indicate open or short circuit conditions.
This Automotive Short and Open Finder, car repair tool is designed to identify and trace wires or cables without damaging the insulation. You can also use it in checking for short circuit and locating open circuit and so on.
💪Wire Tracing

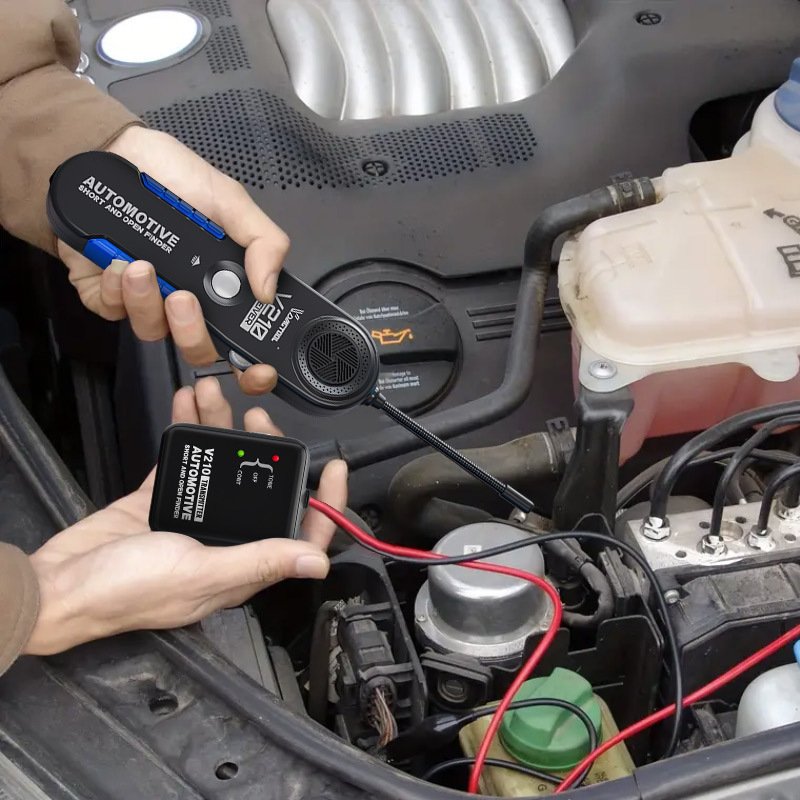

Easy to use by just simply connect the transmitter in series with the circuit or wire under test, (i.e.: in place of a blown fuse, across a connector, in series with an open wire, a light bulb socket, etc.), and scanning the circuit/wire with the tracers flexible probe to find the trouble spot.
💪Check Short Circuits
Automotive Short Circuit Finder allows you to identify intermittent circuit problems by flexing wires or connectors and listening for changes in the receiver tone. This automotive circuit finder with 6.7-inch flexible probe, It can helps reach wires in congested places.
💪How to use the Probe of VDIAGTOOL V210?

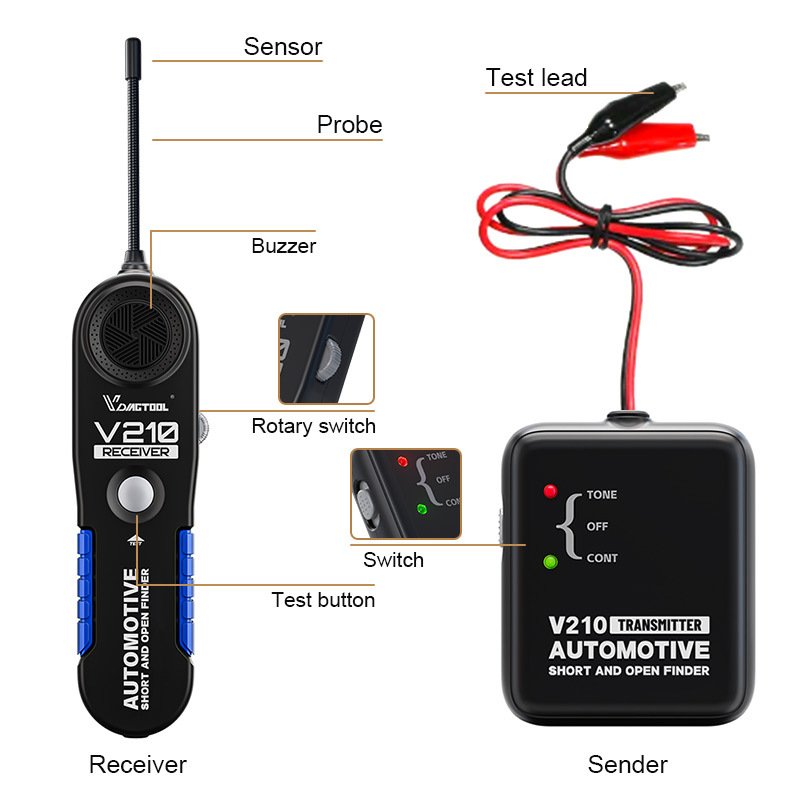

The Short Circuit Finder is equipped with an adjustable 7″ supple probe, providing flexibility to reach difficult areas. This feature makes this product a must-have for professionals and DIY enthusiasts alike.
The receiver’s probe is constructed with coiled steel and can be flexed as necessary to access wires in crowded or challenging spaces. Depending on the circuit’s characteristics and sensitivity set-tings, the probe will detect signals from the wire in various positions. For optimal results, position the receiver’s probe tip (black cap) perpendicular (at 90 degrees) to the wire being traced, either above or below it.
💪V210 Working Volt
Automotive Electrical Circuit Tracer is compatible with a wide range of circuits operating between 6 and 42 volts DC, including automobiles, trucks, tractors, boats, RVs, and more. Versatile for various applications with its wide working voltage range.
FUNCTION: * Tracing of wires is made possible even inside bundles, co-nduits, behind panels, under carpets, upholstery, etc * Easy to use: simply connect the transmitter in series with the circuit or wire under test, (i.e.: in place of a blown fuse, across a connector, in series with an open wire, a light bulb socket, etc.), and scanning the circuit/wire with the tracers flexible probe to find the trouble spot
* 42 V Ready: for use in the new generation of vehicles with mixed or single 42 Volt systems * Operates on DC voltages from 6 to 42 volts * Internally protected against power surges and overloads * 7″ flexible probe allows reaching wires in congested places * Transmitter and Receiver LEDs show open or short circuit conditions * Adjustable sensitivity for all tracing situations * No wire piercing required, non-contact technology!
