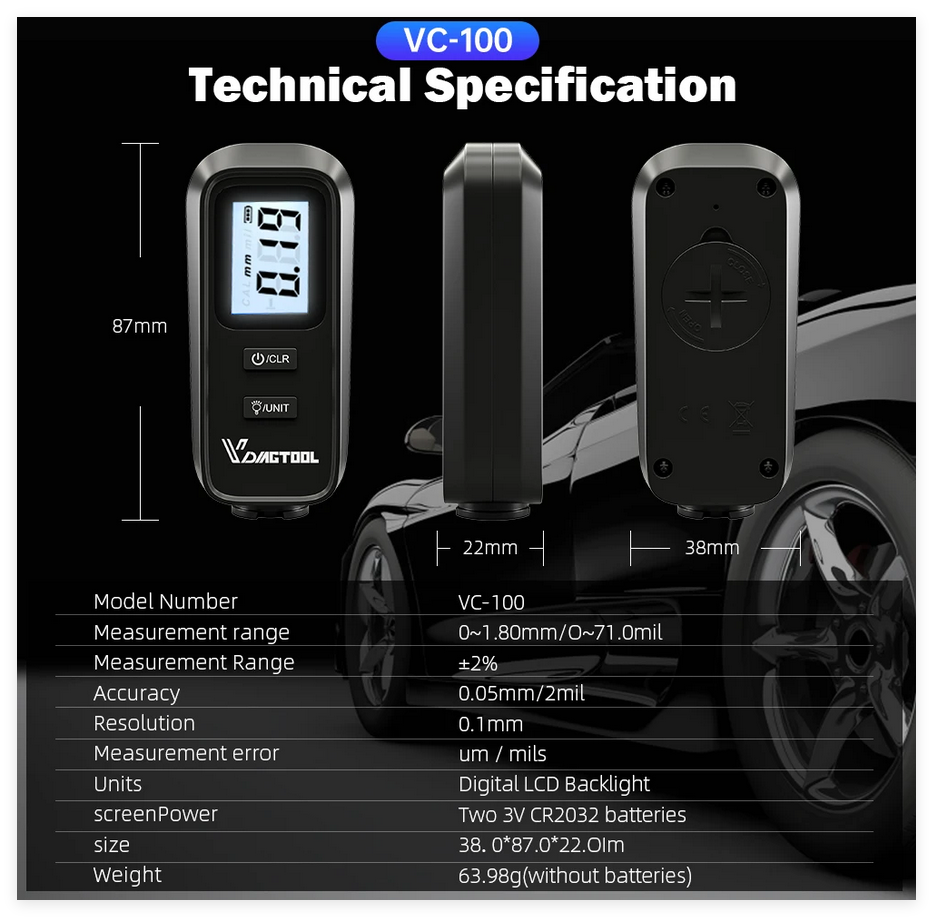

Plz note: The Battery Was Not Included In The Package. Plz Contact The Sellers If You Need It. Car Paint Tester Introduction This product is a portable coating thickness gauge,which can meansure the thickness of non-metallic coating(such as paint,film,etc.) On netal substrate quickly,nondestructively,and accuratly.It is mainly used to measure the thickness of the vehicle’s surface paint and other coating meaurement. Technical Parameters
【Measuring the Thickness of Vehicles’ and Other Coating + Used for Car Coating Damage Assessment/Car Accident Detection】:This portable coating thickness gauge can measure the thickness of non-metallic coating(such as paint, film, etc.) on metal substrate quickly, nondestructively and accurately. It is mainly used to measure the thickness of the vehicle’s surface paint and other coating.

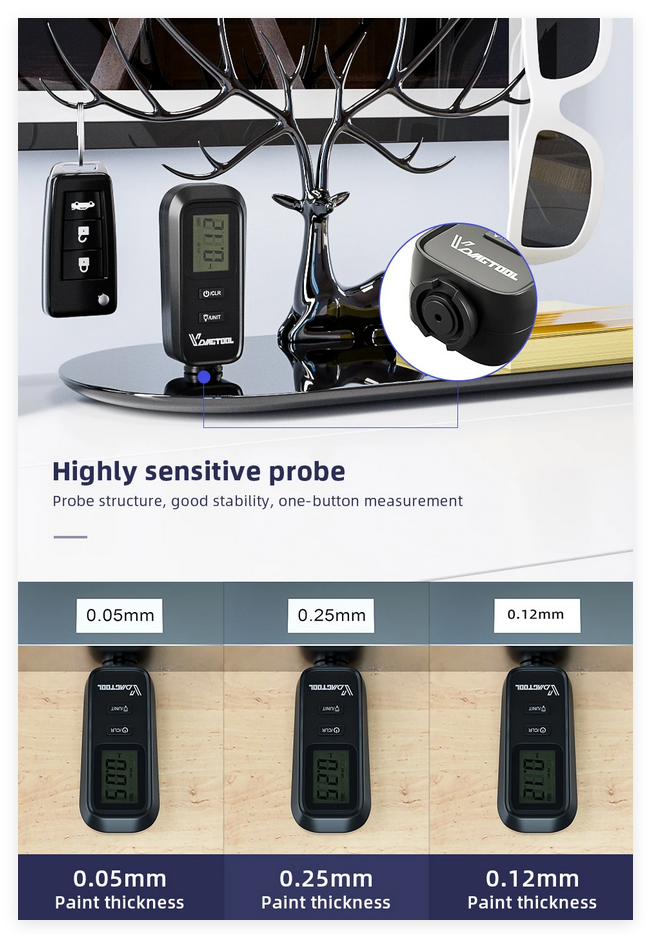

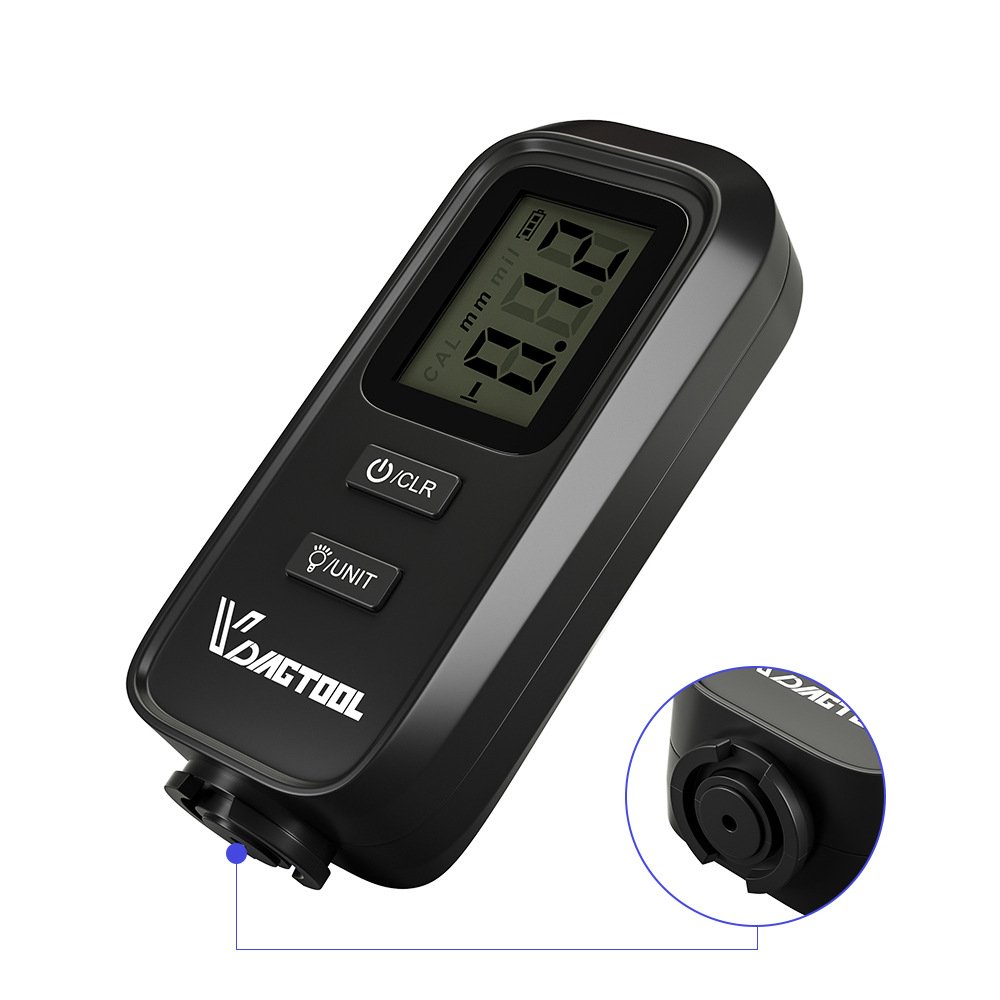

【HD Backlight Mode + 2 Units Conversion + Vertical 90° Test + Highly Sensitive Probe】: ▶▶▶ With digital LCD backlight display, this car paint thickness meter can read data clearly in night or dark environment. ▶▶▶ The measurement unit can be switched between mm and mil to facilitate different measurement requirements. ▶▶▶ When measuring the thickness of the paint, the tester must be perpendicular to the test surface at 90°. ▶▶▶ High sensitivity probe makes measurement quickly and accurately.
【Portable and Easy to Use】: Outline dimension is 1.5*3.43*0.87 inches, weight is 0.14 lb, mini size and lightweight make it easy to carry.
【Working Principle】: This car paint thickness tester uses the Magnetic Induction Measurement Principle. The thickness of the coating is measured by the magnitude of the magnetic flux flowing, from the probe through the non-ferromagnetic coating into the ferromagnetic substrate.
【Please Kindly Note】: This car paint depth gauge DOESN’T include the button batteries (CR2032*2). If you need it with battery, pls choose the “with battery” option for purchasing.
Button Functions
1.Botton”CLR”:Turn on/off,clear. 2.Botton”UNIT”:Unit Switch,backlight ?6?7 Operation Instructions 1.Measurement preparation Open battery cover and load two CR2032 button batteries(Not Includes); Pay attention to positive and negative pole.
2.Turn on/off Leave the instrument hang in the air and press”CLR”button to turn it on,LCD full screen display,which means it enters the measurement state.Then long press”CLR”button to turn it off. Note:Keep it away from the substrate when starting up.
3.Measurement Press the probe onto the coated metal substrate lightly,ensure that the instrument should be perpendicular to the surface of the object that being measured. Note:When the probe was pressed on the substrate,the LCD will display”—“,then you must wait unit the measurement value displayed the LCD,then remove it from the substrate.If removing before a value is displayed,it will display the last measured value.
4.Unit selection After start-up,short press”UNIT”button to select measurement unit mm or mil.

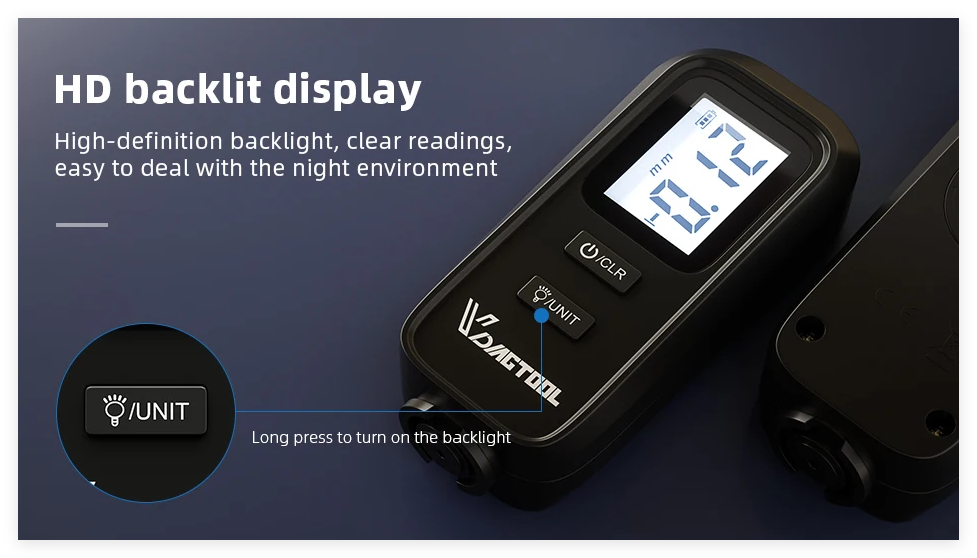

5.LCD backlight After start-up,long press”UNIT”button to turn on/off the backlight.
6.Clear screen data After start-up,press”CLR”button to clear the data displayed on LCD screen.
7.Power off automatically The instrument will power off automatically if two minutes no operation after start-up.And it will power off automatically as well after five minutes start-up,even when you are operating it.
Car Paint Tester Operation Instructions
👉 Measurement preparation
Open battery cover and load two CR2032 button batteries(Not Includes); Pay attention to positive and negative pole.
👉 Turn on/off
Leave the instrument hang in the air and press”CLR”button to turn it on,LCD full screen display,which means it enters the measurement state.Then long press”CLR”button to turn it off.
⚠️Note: Keep it away from the substrate when starting up.
👉 Measurement
Press the probe onto the coated metal substrate lightly,ensure that the instrument should be perpendicular to the surface of the object that being measured.
⚠️Note: When the probe was pressed on the substrate,the LCD will display”—“,then you must wait unit the measurement value displayed the LCD,then remove it from the substrate.If removing before a value is displayed,it will display the last measured value.
👉 Unit selection
After start-up,short press”UNIT”button to select measurement unit mm or mil.
👉 LCD backlight
After start-up,long press”UNIT”button to turn on/off the backlight.
👉 Clear screen data
After start-up,press”CLR”button to clear the data displayed on LCD screen.
👉 Power off automatically
The Car Paint Tester will power off automatically if two minutes no operation after start-up.And it will power off automatically as well after five minutes start-up,even when you are operating it.
Packing list

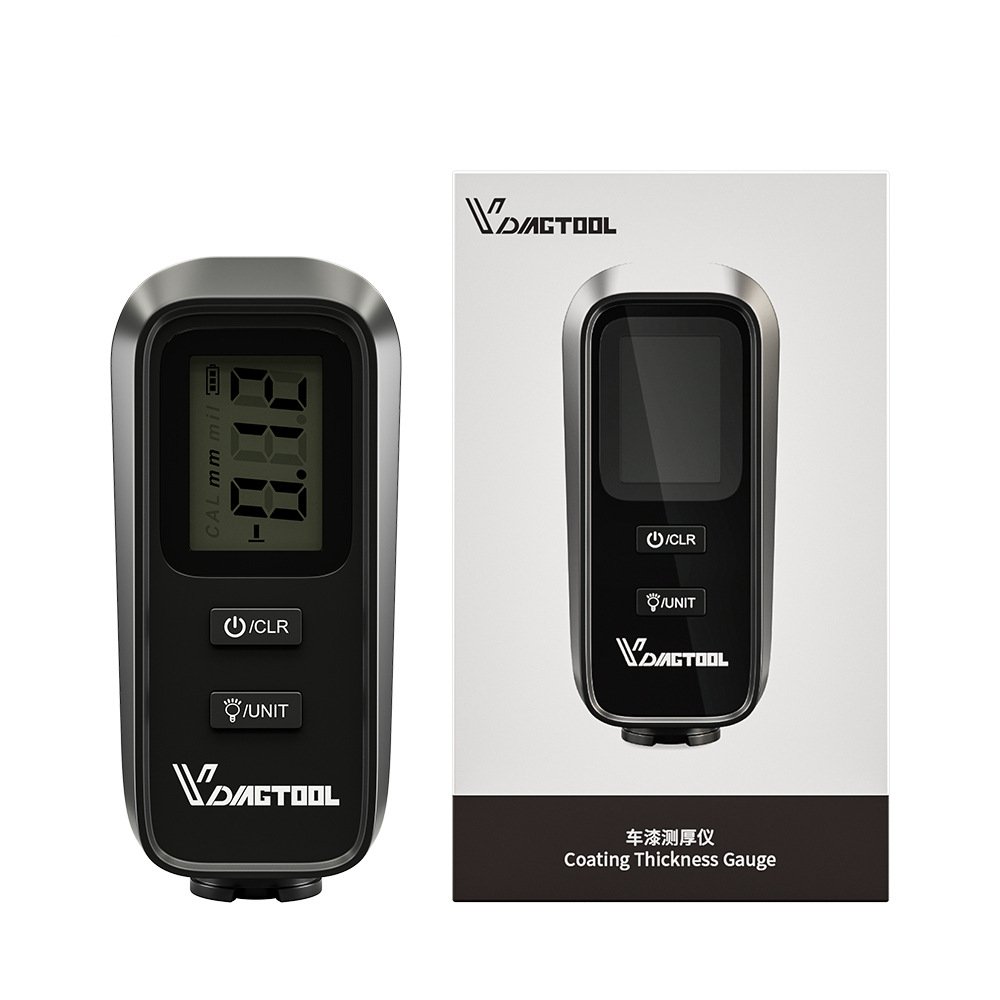

1 * VC-100 thickness gauge
1 * user manual

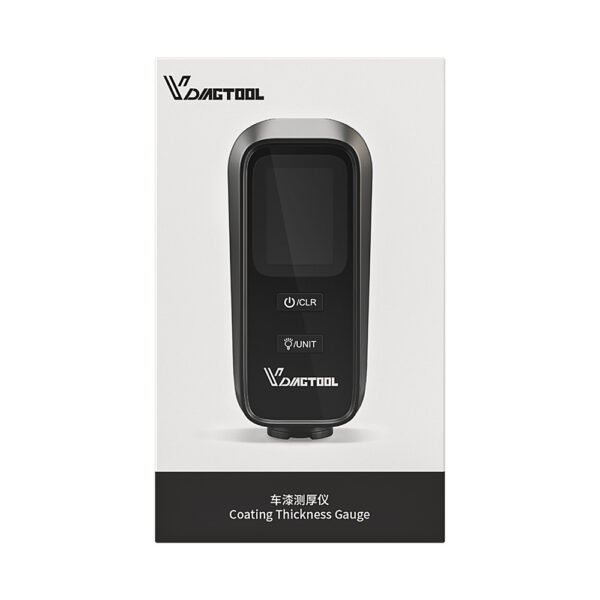

1 * packing box
