GM MDI 2 Multiple Diagnostic Interface with Wifi Card
GM MDI 2 Description:

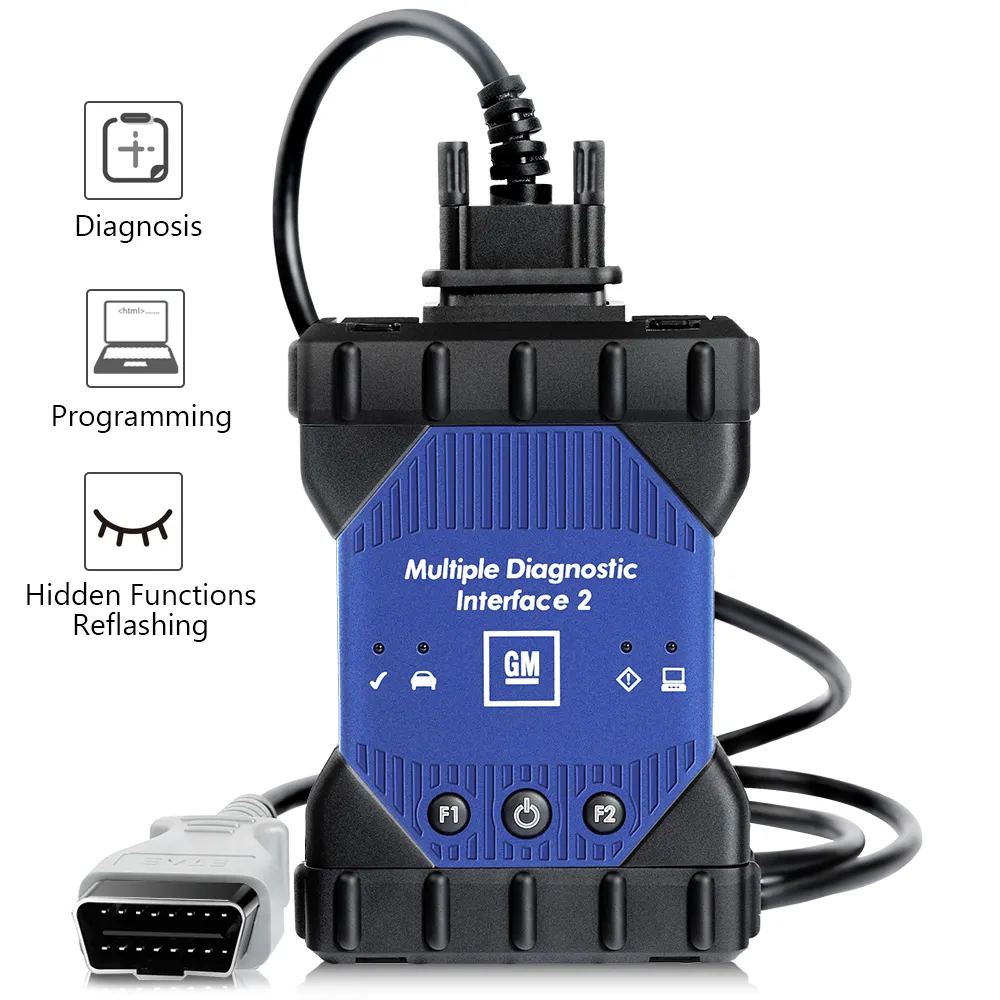

The Multiple Diagnostic Interface 2 (MDI 2) is used by professional technicians as an aid in diagnosing and repairing automotive

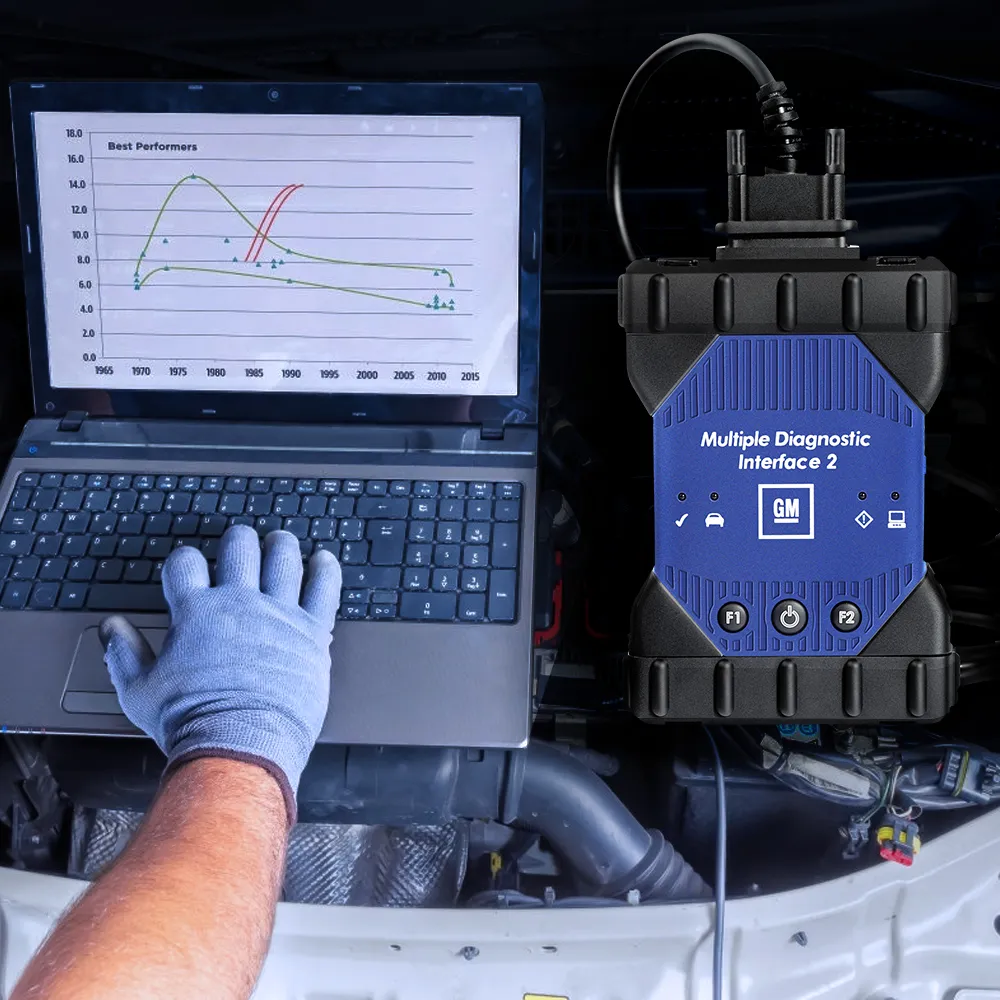

electrical and electronic systems. The MDI 2 is designed to connect the vehicle to a host PC computer application, which then
functions through the MDI 2 for data transfer and Electronic Control Unit (ECU) reprogramming.
The newest pc-based GM Multiple Diagnostic Interface (MDI 2) offers increased processing power, security, and faster programming
speeds on Global A and future
Global B vehicles.
The MDI 2 supports diagnostic applications: GDS 2, Data Bus Diagnostic Tool, and Tech2Win. It also supports Pass-Thru
programming applications: TIS2Web–SPS. It replaces the first generation MDI, introduced in 2007, for Pass-Thru programming on
current GM models. The MDI 2 is backward compatible, so it can be used to perform Pass-Thru programming on all vehicles built

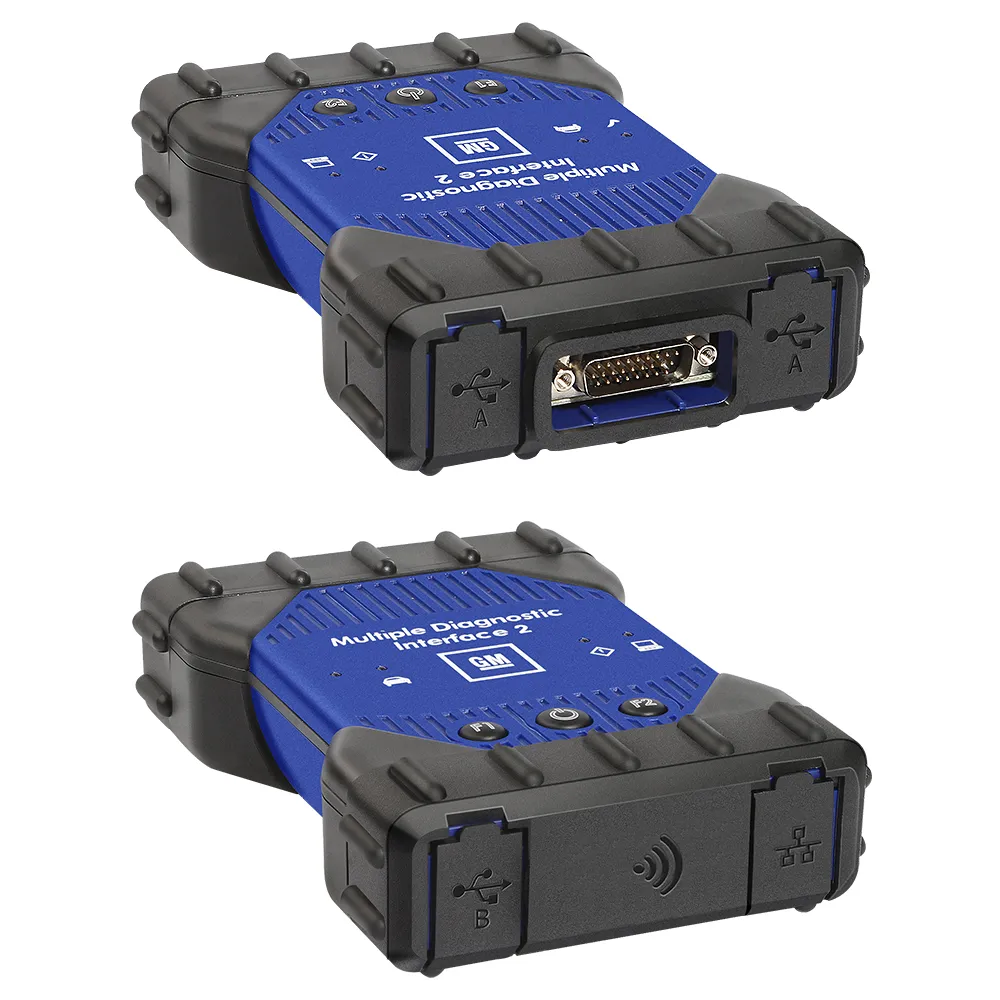

since 1996 by means of the J1962 connector using a DLC cable. Connection between the MDI 2 and the PC can be accomplished via
standalone (USB) and the dealership network (CAT5).
GM MDI 2 Features:
● Uses a new, more secure Type B connector and Ground Offset Failure protection. A wired connection is recommended for longer
programming events.
● The MDI 2 is powered from the vehicle battery via the DLC Cable. It may also be powered over USB to perform firmware updates
only using a PC.
● Uses USB 2.0 for faster firmware downloads instead of a separate AC power supply.
● The DLC cable is twice as long as the previous cable and connects at the top, making it easier to use. The cable only
connects to the MDI 2.

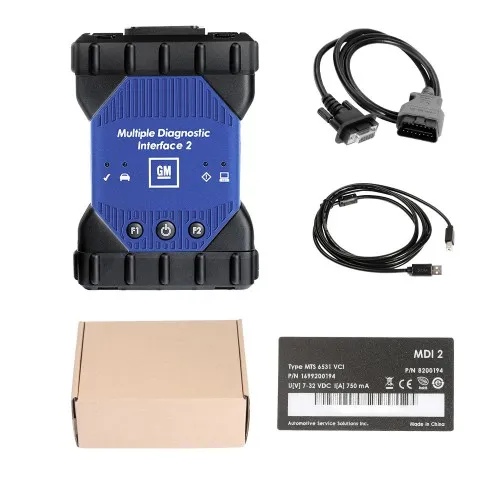

GM MDI 2 Package List:
1pc x MDI device
1pc x DLC Cable SAE J1962
1pc x 10-ft. USB A to USB B Cable
